Crane End Carriage Wheel

We can provide forged and cast crane wheels in a wide range of sizes, also can customize the wheel acc.to customer’s special design requirements.

Capacity(kg):

1000-12500

Working Class(FEM):

1Am-4m

Working Class (ISO/GB):

M4-M7

Lifting Height (m):

6/912/18

Trolley Speed (m/min):

2-20

Get Price Chat Now Pdf Download Send Email

Share With :

Product Description Configuration Related product Inquiry

Product Description

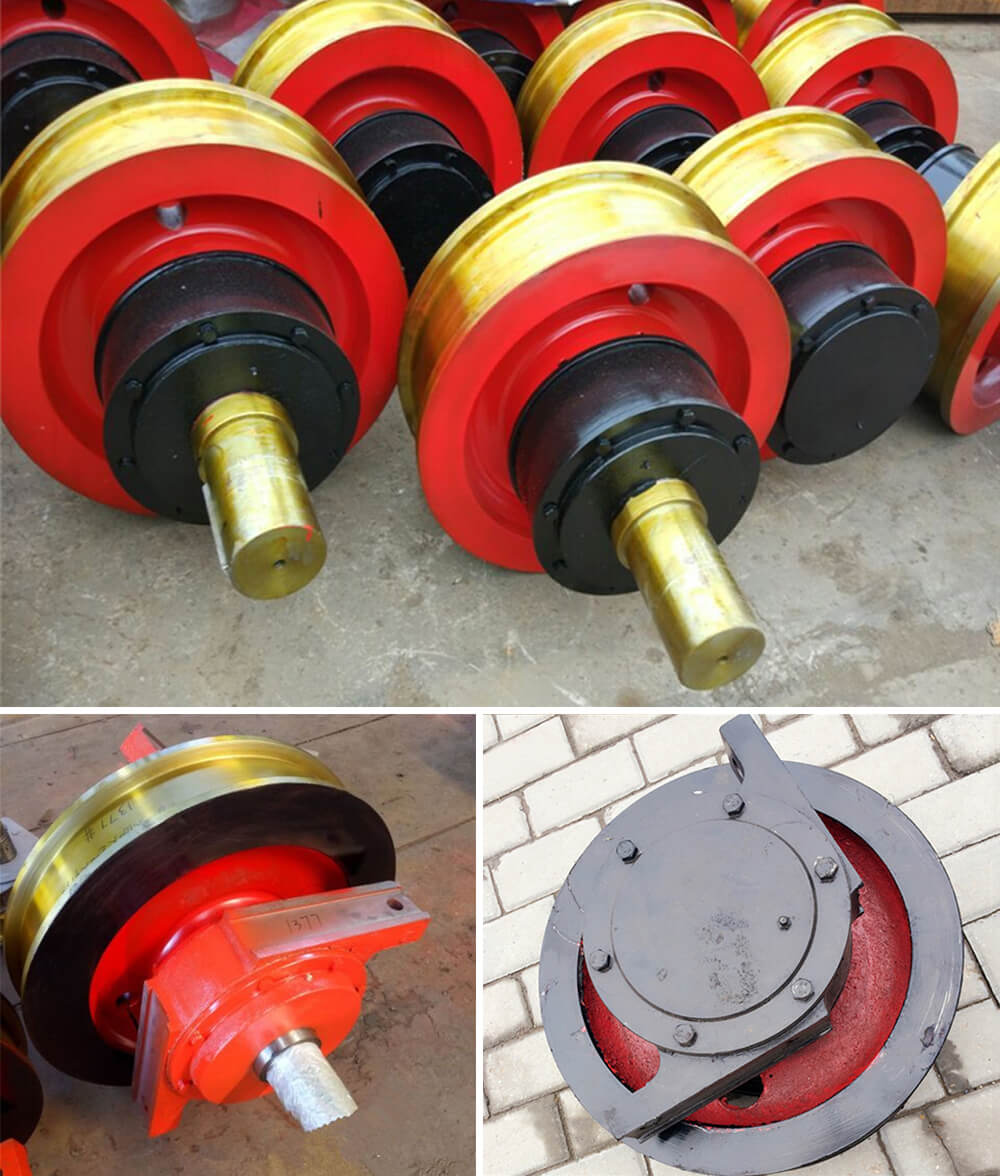

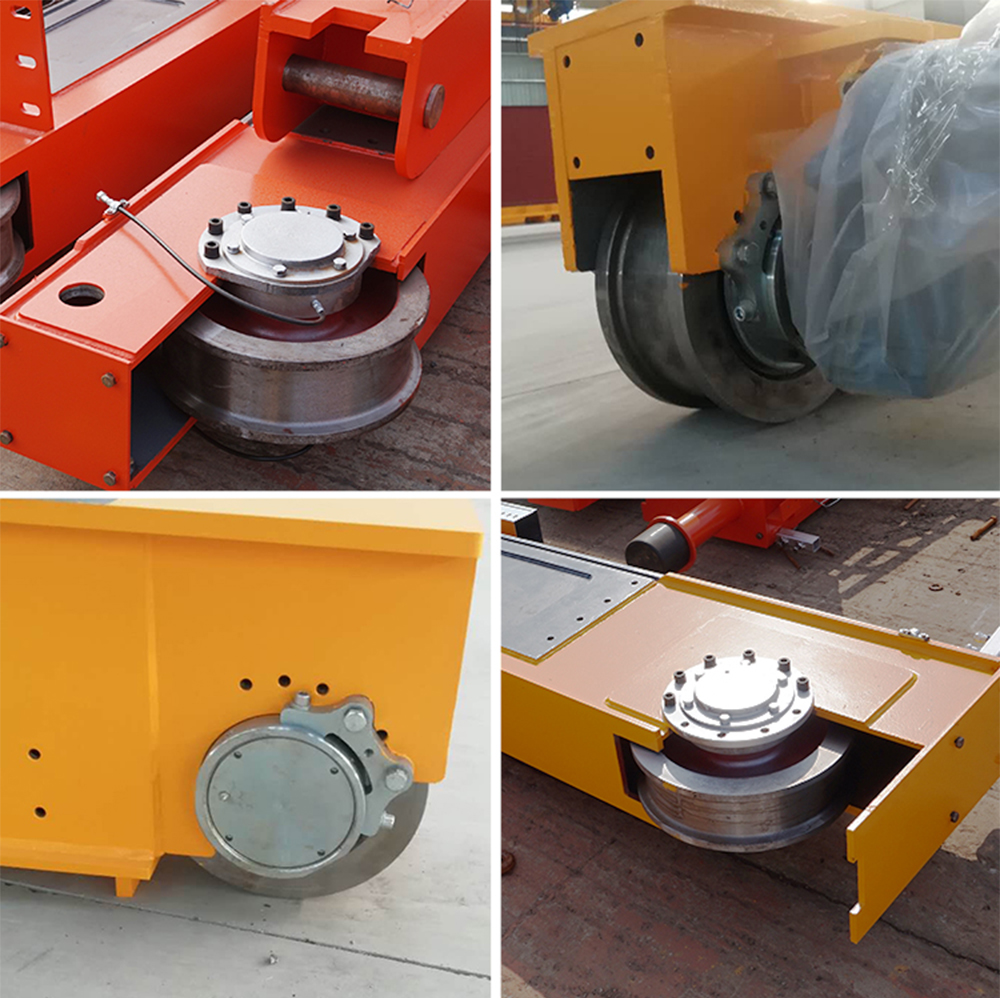

The wheel is a device used to support the crane and the load and to cause the crane to travel back and forth on the track. The material of the wheel is generally ZG430-640 cast steel.In order to improve the wear resistance and life of the wheel surface, the tread surface should be subjected to surface heat treatment, and the surface hardness is required to be HB300-350, and the quenching depth is not less than 20 mm.

Features

Overall forging, high strength, deep wear layer.

The series of wheels are hot formed by forging technology. The metal flow line distribution is more complete and reasonable, which prolongs the service life of the wheel, and has excellent mechanical properties and safe and reliable quality.

Wheel diameter Φ250-900mm.

Material: 42CrMo, 65# 60#, etc., can also be customized according to customer requirements.

Tread and rim quenching layer depth ≥ 12mm, hardness HRC ≤ 55.

Advantages

High tolerance ;

High tensile strength ;

Safety and flexibility ;

Easy to install;

Large wheel pressure and Heavy Load capacity ;

High strength & durable to use.

Application

Overhead crane and gantry crane;

Rail transfer cart;

Transportation carriage ;

Mill and airlines vehicle ;

Railway locomotive and train;

Construction machinery, and so on.

Configuration

Technical Parameter
Using Tonnage	Above 20T
Surface Treatment	Zinc Plating
Wheel Material	Cast Steel/Forging Steel
Dia. Model	Φ1000
Bearing Type	Steel Bearing
Color	Customized
For more information, welcome to consult...
