European Single Girder Overhead Crane

European Single Girder Overhead Crane is designed with high configuration, which is developed with advanced design technology referring to European FEM standard. Cranes are mainly made up by single main beams, end beams, hoist, electrical parts and other
Span:
7.5-25.5 M
Capacity:
1--12.5 T
Max.Wheel Load:
13.5~90.94 kn
Traveling Rail:
P24~P43
Trolley Weight:
405~740 kg
Share With :
Product Description
Brief Itroduction
Compared to traditional single-beam cranes, European-style cranes have the most reasonable structure for steel structures, hoisting mechanisms and accessories. Large-scale use of high-strength materials, while reducing its total weight at the same time, but also improve the machine carrying capacity. Limit distance from hook to both sides is short but has large working arrange. With lower height above the rails, it makes full use of space of factory building.
Electric single girder European Hoist Type Overhead Crane could be widely used to handle materials in many industries' workshop and warehouse. Such as machinery manufacture, warehouse, logistic, food, paper making, electronics industries workshop and other material handling situations. The lifting hoist adopts M5 working class with double lifting speed. motor with ABM German brand motor. Travelling motor uses SEW European brand in one motor gear motors. Cross and long traveling are variable travelling speed. Electric parts adopt Siemens brand. The protection class is IP 54 high class. The working class can reach to A5/M5 class under ISO standard.
01

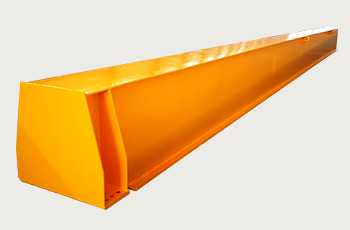

Main Beam
Finework cranes
Q235B carbon structural steel with seamless once forming technology more strong and elegant.
02
End Carriage
Finework cranes
Q235B carbon structural steel,with quality wheels and powerful motors.

03

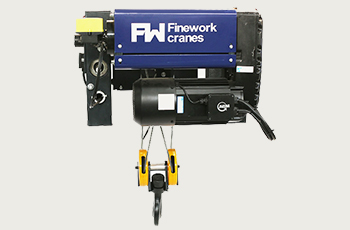

Electric Wire Rope Hoist
Finework cranes
European standard NDS type, simple structure, high performance, low clearance, less failure and long service life.
04
Electric Cabinet
Finework cranes
Schneider  or  SIEMENS brand, famous and popular company in the world.
Technical Parameters
Span m 7.5 10.5 13.5 16.5 19.5 22.5 25.5
Capacity t 1--12.5T
Max.Wheel Load kn 13.5~90.94
Traveling Rail   P24~P43
Trolley Weight kg 405~740
Lifting Speed m/min 0.8/5 0.8/5 0.8/5 0.8/5 0.8/5 0.8/5 0.8/5
Lifting Height m ≥6 ≥6 ≥6 ≥6 ≥6 ≥6 ≥6
Trolley Speed m/min 2- 20 3- 20 2- 20 2 - 20 2 -20 2 -20 2 -20
Crane Speed m/min 3 -30 3 -30 3 -30 3 -30 3 -30 3 -30 3 -30
Total Power kw 4.31 4.31 4.31 4.31 4.67 4.67 4.67
Total Weight 1781~12086
Working Duty M5
