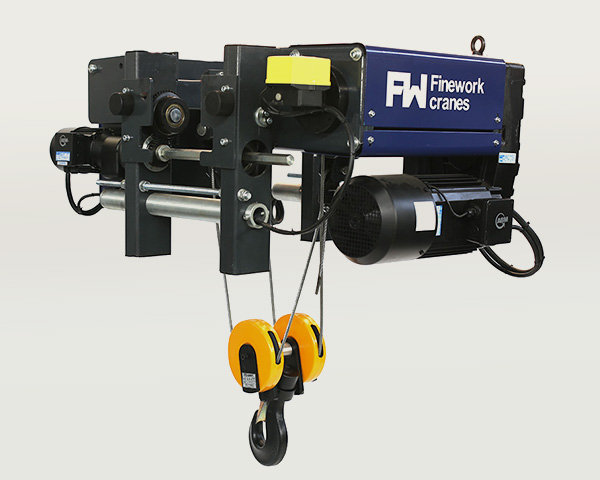

European Type Electric Hoist is designed and manufactured according to international standards with modular and compact design, integrated 3 (motor + reducer + brake) in 1 motor, optimized force distribution to realize the fast and precise positioning fun
Capacity(kg):
1000-12500
Working Class(FEM):
1Am-4m
Working Class (ISO/GB):
M4-M7
Lifting Height (m):
6/912/18
Trolley Speed (m/min):
2-20
Product Description
Product Description
European standard high duty electric hoist is used for Mechanical Workshop. It employs motor of hoisting mechanism and reducer imported ABM from Germany. The integrated and compact design of hoisting motor, reducer, reel and limit switch saves space for the user. Modular design increases the reliability of mechanism meanwhile reduces the time and cost for maintaining.
1
Compact structure, light weight, safe and reliable;
2
Occupying the smallest space;
3
Provide maximum lifting height;
4
Wide used and interchangeable of components;
5
Lifting capacity strong, maintenance easy;
6
Operation easy, lifting stable;
7
Safe lifting weight: 1-12.5 ton.
01

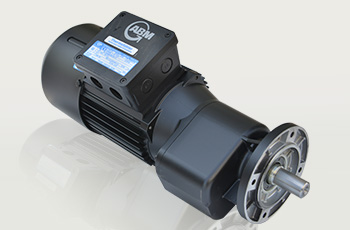

Travelling system
Finework cranes
Integrated design of gearbox,motor and brake,compact structure,stable operation,high efficiency and small impact.
02

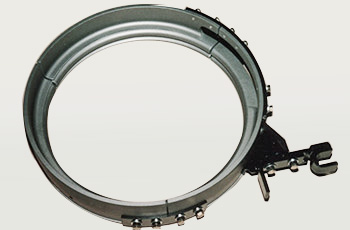

Rope Guide
Finework cranes
Made of engineering plastic nylon, light weight,excellent wear resistance,reducing the wear to the wire rope.

03
Drum
Finework cranes
The material is Q345 seamless steel tube.The advanced machining ensures the drum concentricity. The depth of rope groove conforms to FEM.
04

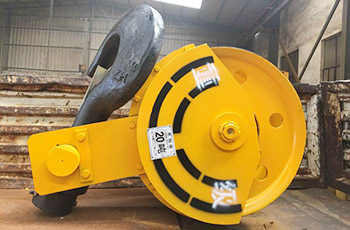

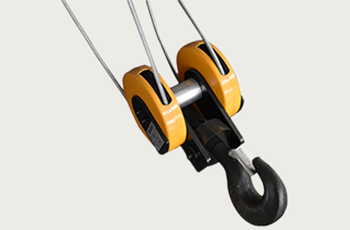

Hook assembly
Finework cranes
"C" Type Forged Hook
DIN standard hook with safety buckle and wire rope sheath.

05

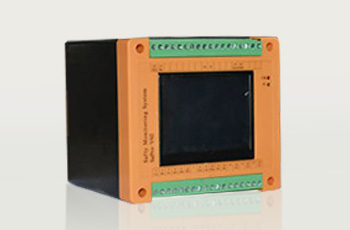

Safety monitor
Finework cranes
FINEWORK star intelligent monitoring system is safe and practical with friendly man-machine interface and simple operation.
06

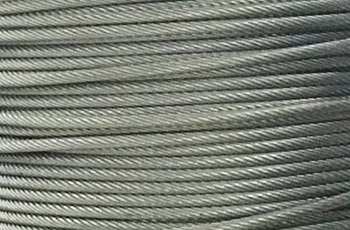

High performance wire rope
Finework cranes
Imported high-performance wire rope with tensile strength 2160N/M2. Galvanized surface treatment make it corrosion resistance.

07

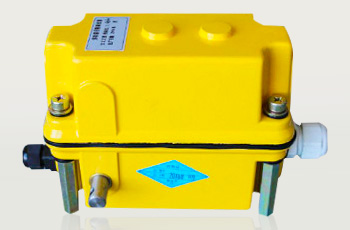

Height limiter
Finework cranes
Freely adjustable screw lifting height limiter with high precision and wide adjustment range,Multi-touch configuration can effectively achieve the switching among fast,slow and stopping functions during rising and falling.
Configuration
All the motors and reducers are of world famous brand.such as ABM,SEW,SIEMENS,ABB,etc.

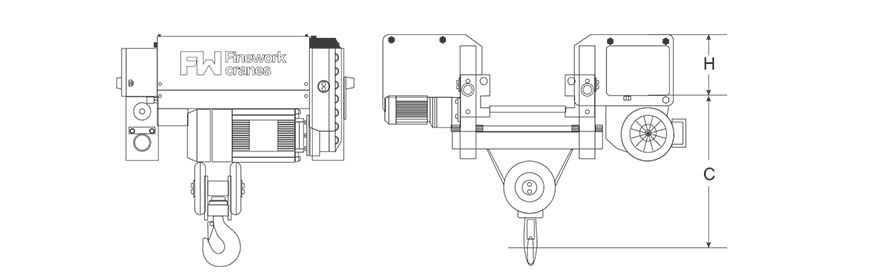

Capacity(kg) Working Class(FEM) Working Class (ISO/GB) Lifting Height (m) Lifting Speed (m/min) Trolley Speed (m/min) H (mm) C (mm)
1000 4m M7 6/912/18 0.8/5 2-20 245 385
1250 3m M6 6/912/18 0.8/5 2-20 245 385
1600 3m M6 6/912/18 0.8/5 2-20 245 385
1600 4m M7 6/912/18 1.3/8 2-20 245 385
2000 2m M5 6/912/18 0.8/5 2-20 245 385
2000 3m M6 6/912/18 1.3/8 2-20 245 385
2500 3m M6 6/912/18 0.8/5 2-20 245 385
2500 3m M6 6/912/18 1.0/6.3 2-20 245 385
2500 2m M5 6/912/18 1.3/8 2-20 245 385
3200 2m M5 6/912/18 0.8/5 2-20 245 385
3200 2m M5 6/912/18 1.0/6.3 2-20 245 385
5000 2m M5 6/912/18 0.8/5 2-20 266 495
5000 2m M5 6/912/18 1.6/10 2-20 296 792
5000 3m M6 6/912/18 1.3/8 2-20 296 792
6300 1Am M4 6/912/18 0.8/5 2-20 266 495
6300 1Am M4 6/912/18 1.3/8 2-20 266 495
6300 2m M5 6/912/18 1.3/8 2-20 266 495
6300 3m M6 6/912/18 1.0/6.3 2-20 266 495
8000 1Am M4 6/912/18 1.3/8 2-20 296 792
8000 3m M6 6/912/18 0.8/5 2-20 296 792
10000 1Am M4 6/912/18 1.0/6.3 2-20 296 792
10000 2m M5 6/912/18 0.8/5 2-20 296 792
10000 3m M6 6/912/18 0.66/4 2-20 296 792
12500 1Am M4 6/912/18 0.8/5 2-20 296 792
12500 2m M5 6/912/18 0.6/4 2-20 296 792
12500 2m M5 6/912/18 0.6/4 2-20 296 792









Henan FineWork Cranes Co.,Ltd is a professional manufacturer and service supplier of material handling equipment integrating R&D, design, manufacturing and marketing, all the cranes and electric hoists comply to FEM/DIN standard.Our company was founded in 1984, which is one of the most competitive enterprise with the largest production & sales turnover, it is also one of the most influential brand in Chinese crane industry.
