Technical Parameters
| Parameters of 6 jaw petals | |||||
| Volumes (m³) |
Proportion of materials (t/ m³) |
Capturing the materials (t) |
Opening/closing time (s) |
Self-weight of the grab (t) |
Suggestion of the equiped crane |
| 0.5 | 1.8 | 0.9 | 5/7 | 1.1 | 3T |
| 0.6 | 1.7 | 1.02 | 5.5/7.5 | 1.15 | 3T |
| 0.75 | 3 | 2.25 | 8/12 | 2.5 | 5T |
| 1 | 2 | 2 | 9/13 | 2.8 | 5T |
| 1.5 | 1.2 | 1.8 | 10/15 | 2.6 | 5T |
| 1.5 | 2.7 | 4.05 | 5/8 | 3.1 | 8T |
| 2 | 2.5 | 5 | 5/8 | 4.5 | 10T |
| 3 | 2 | 6 | 6/10 | 3.85 | 10T |
| 4 | 2 | 8 | 6/10 | 5.3 | 15T |
| 56 | 1.5 | 7.5 | 8/13 | 6.4 | 16T |
| 3 | 2.5 | 7.5 | 8/14 | 6.9 | 16T |
| 4.2 | 2.8 | 11.8 | 9/15 | 8.43 | 20T |
| Parameters of 2 jaw petals | |||||
| Volumes (m³) |
Proportion of materials (t/ m³) |
Power of the moto r (KW) |
Opening /closing tim e(s) |
Self-weight of the grab (t) |
Suggestion of the equiped crane |
| 4.5 | 0.9-1.6 | 18.5 | 13 | 3.7 | 8T |
| 5.5 | 0.9-1.6 | 22.0 | 17 | 4.5 | 10T |
| 7 | 0.9-1.6 | 22.0 | 18 | 5 | 15T |
| 10 | 0.9-1.6 | 28.0 | 18 | 7 | 20T |
| 12 | 0.9-1.6 | 37.0 | 18 | 9.3 | 25T |
| 18 | 0.9-1.6 | 55.0 | 19 | 14.5 | 32T |
| 3 | 1.6-2.6 | 18.5 | 13 | 3.2 | 8T |
| 4 | 1.6-2.6 | 18.5 | 18 | 4.2 | 10T |
| 6.5 | 1.6-2.6 | 22.0 | 17 | 5.6 | 15T |
| 8 | 1.6-2.6 | 28.0 | 18 | 6.5 | 20T |
| 10 | 1.6-2.6 | 37.0 | 18 | 8 | 25T |
| 12.5 | 1.6-2.6 | 45.0 | 18 | 10.5 | 32T |

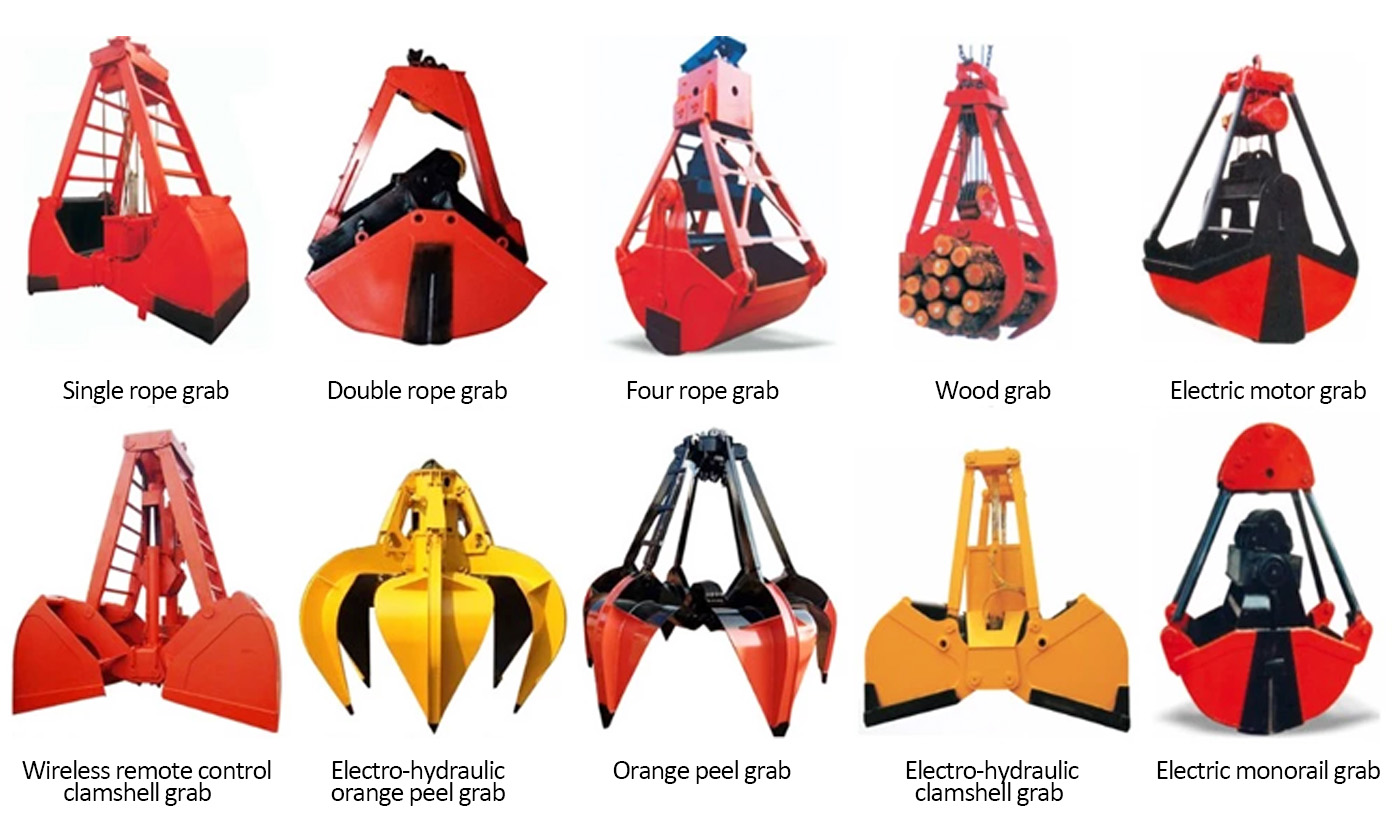

Configuration
