Product Description
Features
Crane radio remote control offers a full range of radio control options for all of your material handling needs. Whether you need a simple two-motion single speed remote for you monorail, or a more complicated customized system for dual hoist bridge cranes with A-B Both functionality, we can find a solution for you. Whether you need a remote for your small crane in a plant or are building transmissions for the automotive industry we supply radio control options that will make your process safer and easier.
Specification
Application |
Tower cranes,Concrete pumps, Crane truck,Overhead cranes,and other industrial machine |
Frequency |
310.0325~331.165Mhz |
Frequency generation: |
Crystal(plug in) |
Channel |
80 |
Channel spacing |
0.2675MHz |
Control motions |
40 |

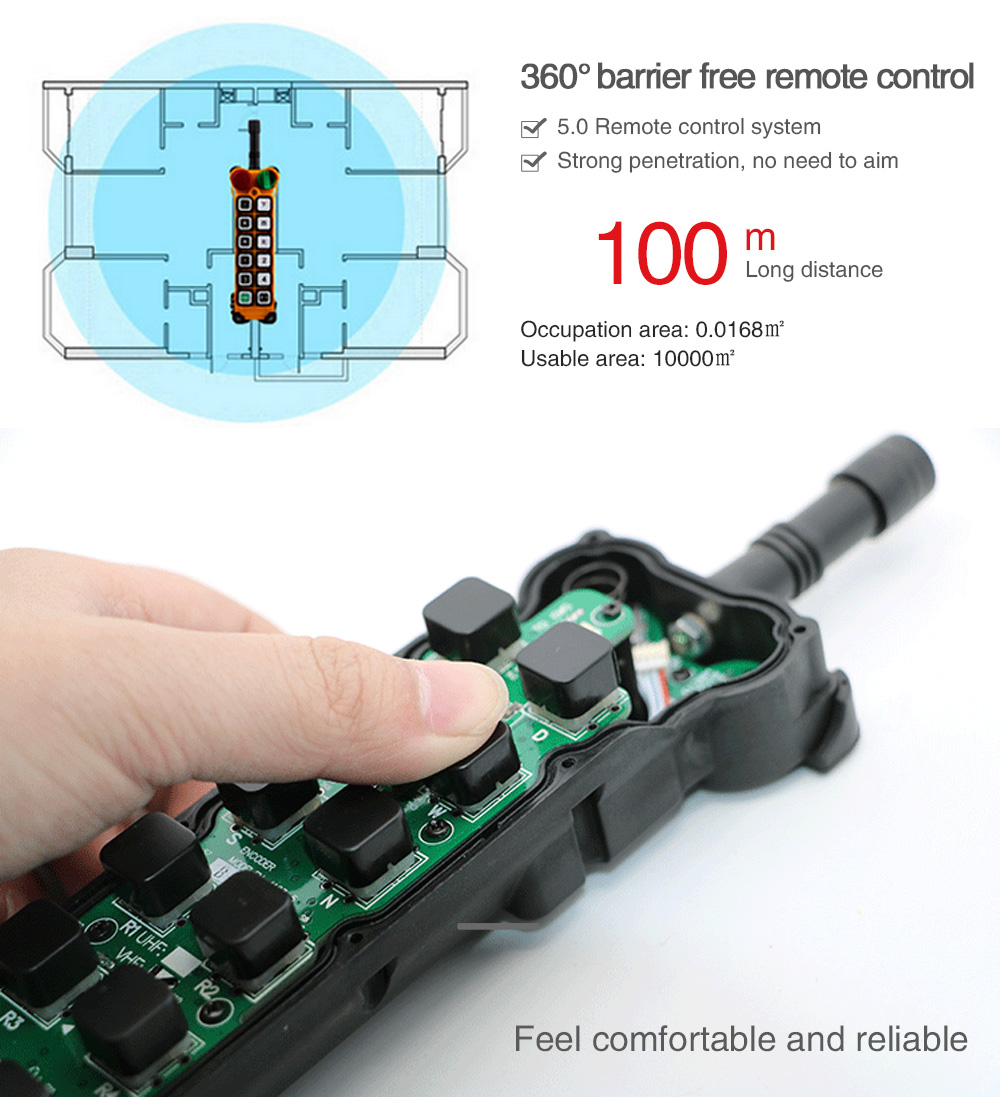

Control distance |
Up to 100m |
Certificates |
CE,FCC,ISO9001:2008 |

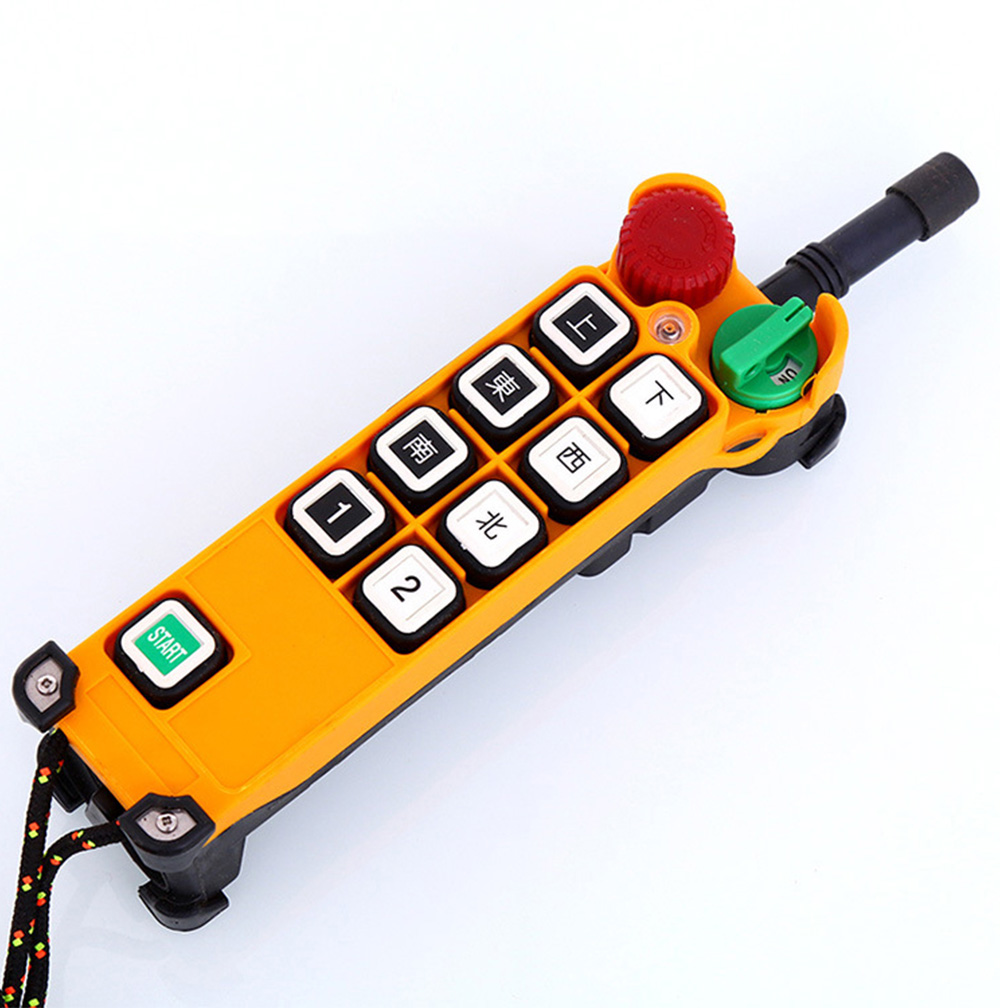

Number of push button |

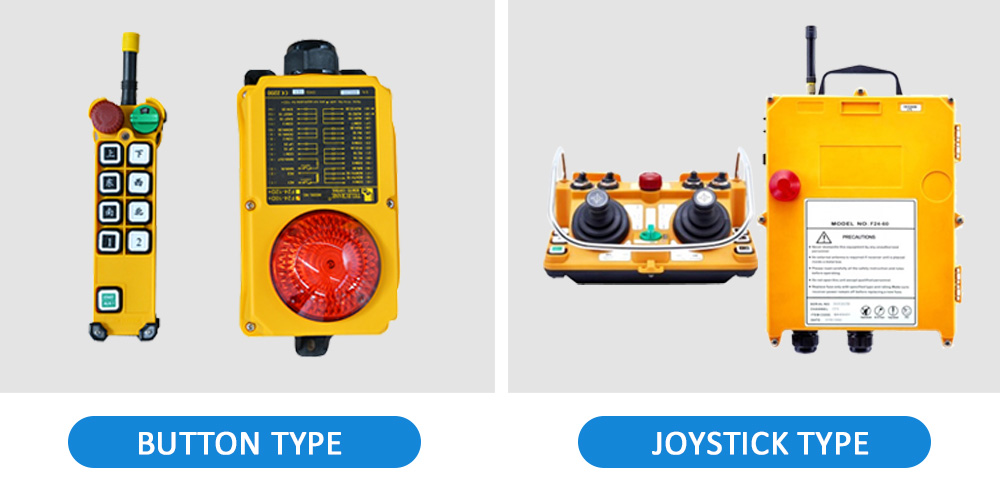

Dual speed joystick |
Unique code |
Over 4.3billon unique ID codes |
Working temperature |
-35℃~+80℃ |
Enclosure protection class |
IP65 |
Transmitter power |
4AA-size batteries |

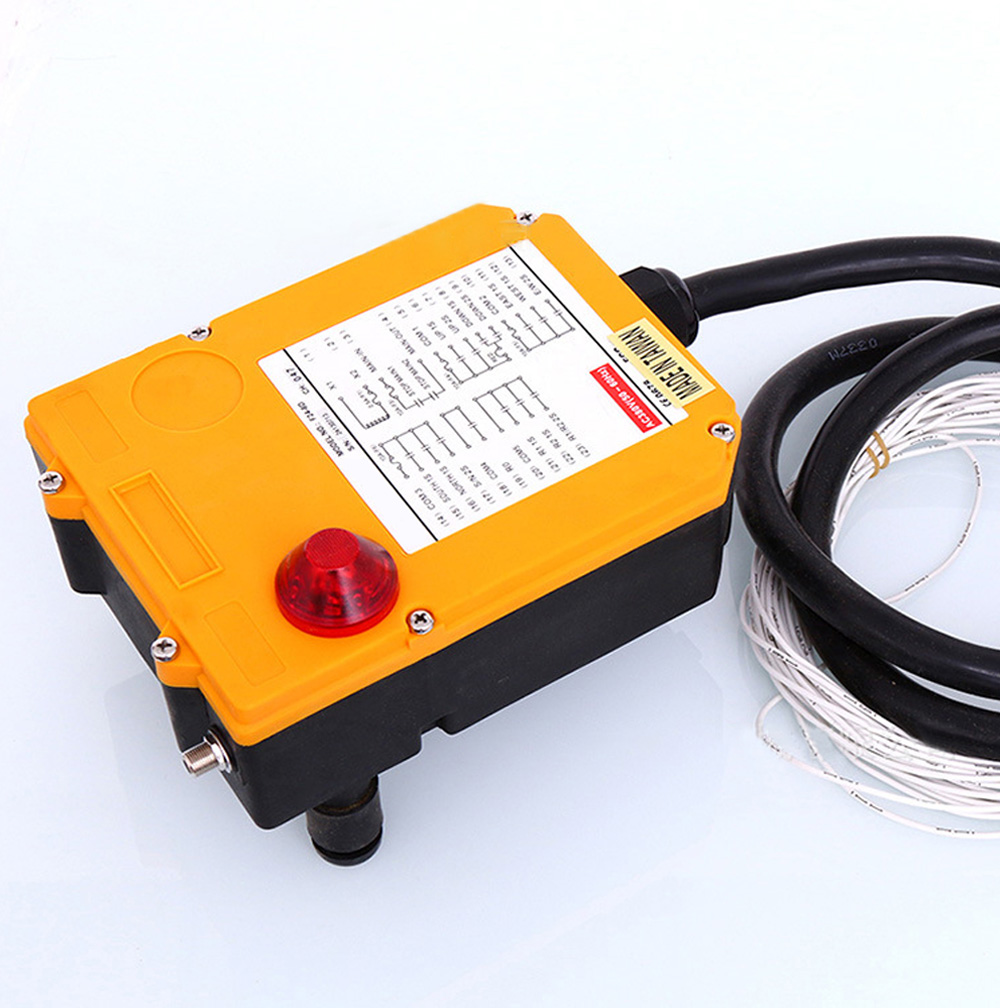

Receiver power |

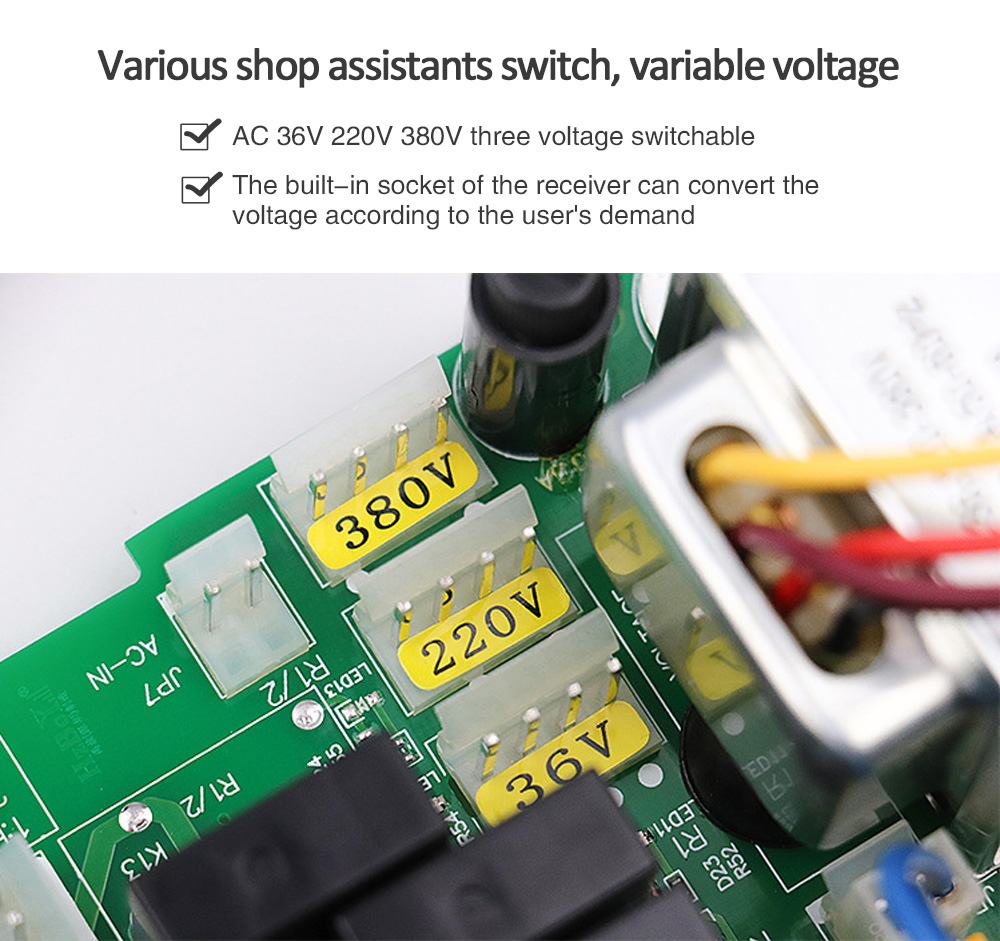

AC 380V/220V/110V/48V/26V/24 or AC/DC12V |
Output capacity |
Full sealed relay output with 5 amperes |
Warranty |
1 year |
Material |
Glass fiber |
Advantages
1
Safety and reliability
2
High work efficiency
3
Save manpower
4
Improve the working environment
Application
1
Places where wired devices are not allowed;
2
Places that want to improve work efficiency;
3
Places where the environment is bad and the creature cannot be close;
Specific application areas
Cranes, driving. Large heavy industrial machinery such as liquefaction cranes, concrete pump trucks, roller coasters, mining machinery, cranes, large cranes, dump trucks, hoisting locomotives, and cranes.
