Rope Guide

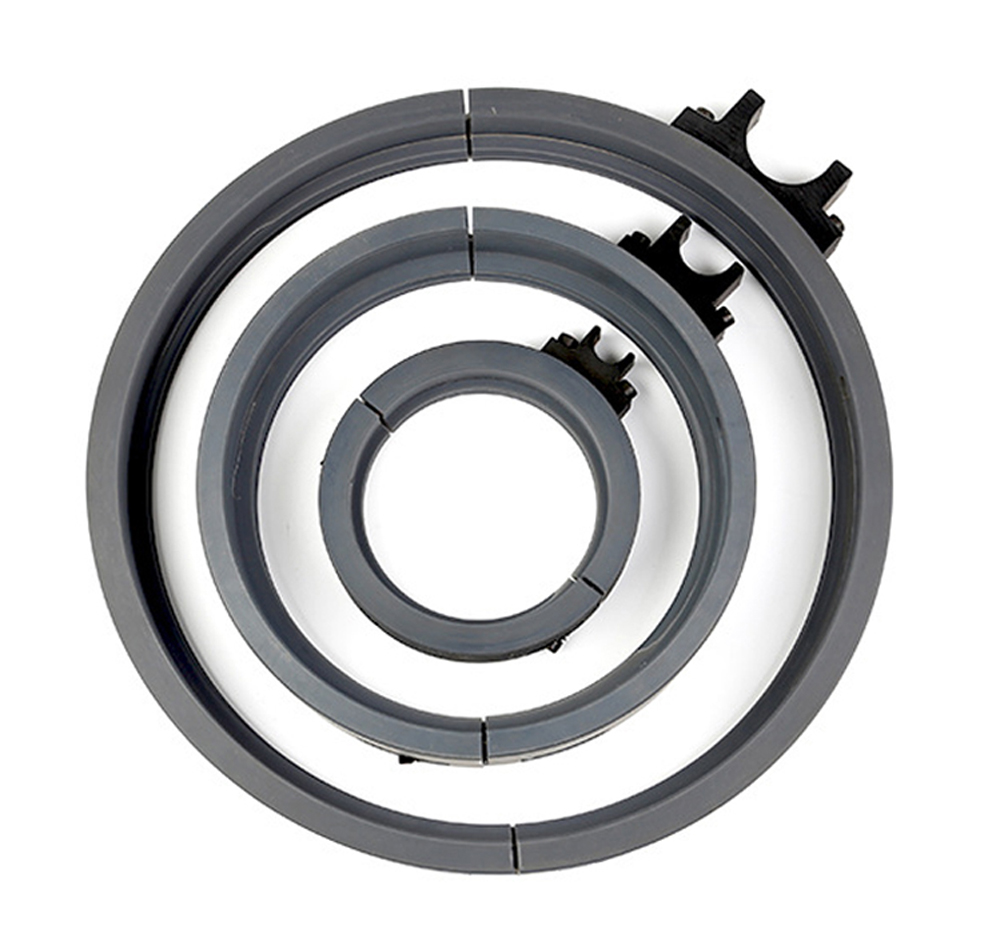

This rope guide is made of engineering plastic, light weight, excellent wear resistance, reducing tear and wear of wire rope.
Share With :
Product Description
Product Description
The guide rope is also called the rope hoist, is one of the accessories of the electric hoist, its role is to make the wire rope can be arranged neatly on the reel to prevent the wire rope chaos, overlap and so on caused by electric hoist mechanical failure, and even damage the electric gourd.
Advantages
1
Simple structure,easy and fast installation, without special tools
2
Maintenance and efficient, low failure rate, with practical features
3
Low failure rate, with practical features
4
The guide is lightweight, rigid and durable
5
Roller wheels for smooth movement, which can extend service life by reducing the wear of the rope drum and the guide itself.
6
The design does not affect the hook approach.
Application

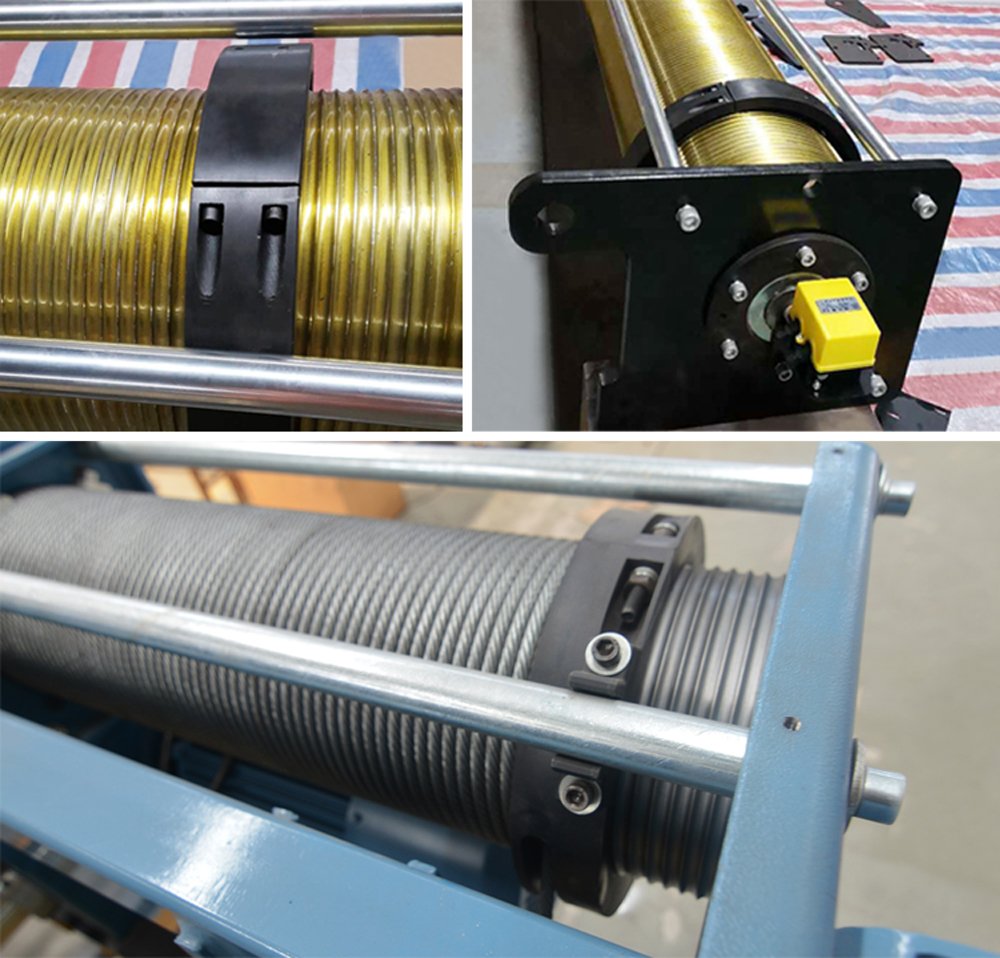

The rope guide is lightweight and durable, and it installs quickly and easily, with no special tools required. It is exceptionally rigid and able to withstand extreme applications and environments. The roller wheels provide smooth transition movement, which can extend service life by reducing the wear of the rope drum and the guide itself. The guide can be made to suit a wide range of drum size and any drum pitch direction, and its modular design allows for installation of devices for new features, such as drum cleaning, side-pull prevention and rope measuring. A rope guide for a certain drum diameter can be configured to fit different hoist applications and construction.
Technical Parameters
Technical Details
3t left rotate
Wire Diameter 6mm
Reel Diameter 140mm
External Diameter Weight Pitch
Ø180mm 0.3KG 7.2mm
5t left rotate
Wire Diameter 8mm
Reel Diameter 190mm
Ø235mm 0.5KG 9mm
10t left rotate
Wire Diameter 11mm
Reel Diameter 268mm
Ø310mm 0.8KG 12.5mm
16t left rotate
Wire Diameter 15mm
Reel Diameter 295mm
Ø342mm 1KG 17mm
20t left rotate
Wire Diameter 15mm
Reel Diameter 295mm
Ø342mm 1KG 17mm
