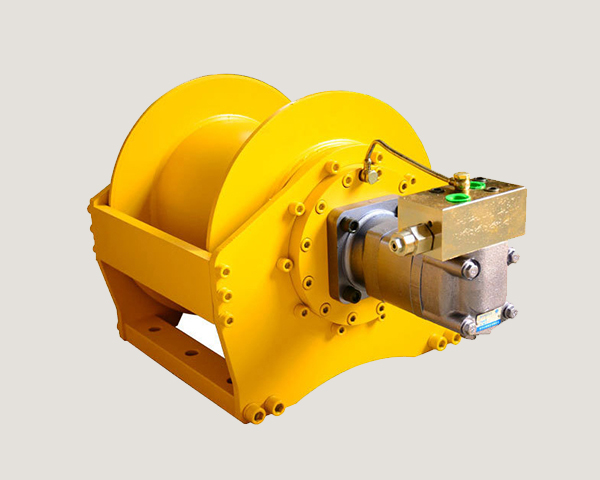

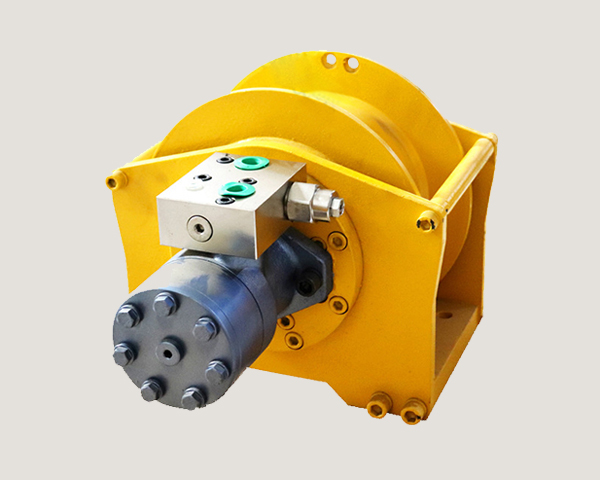

Hydraulic winch

Heavy duty single drum hydraulic winch adopt two-stage planetary gear transmission, compact structure, smooth operation, more tooth, the transmission efficiency high output torque, Suitable for all kinds of bridge, port, wharf, road and bridge engineering

Power:

1400W, 1200W

Voltage:

380V/415V or as your require

Power Source:

Electric

Customized:

OEM, ODM

Working System:

A3-A8

Get Price Chat Now Pdf Download Send Email

Share With :

Product Description Technical Parameters Related product Inquiry

Product Description

Product Application

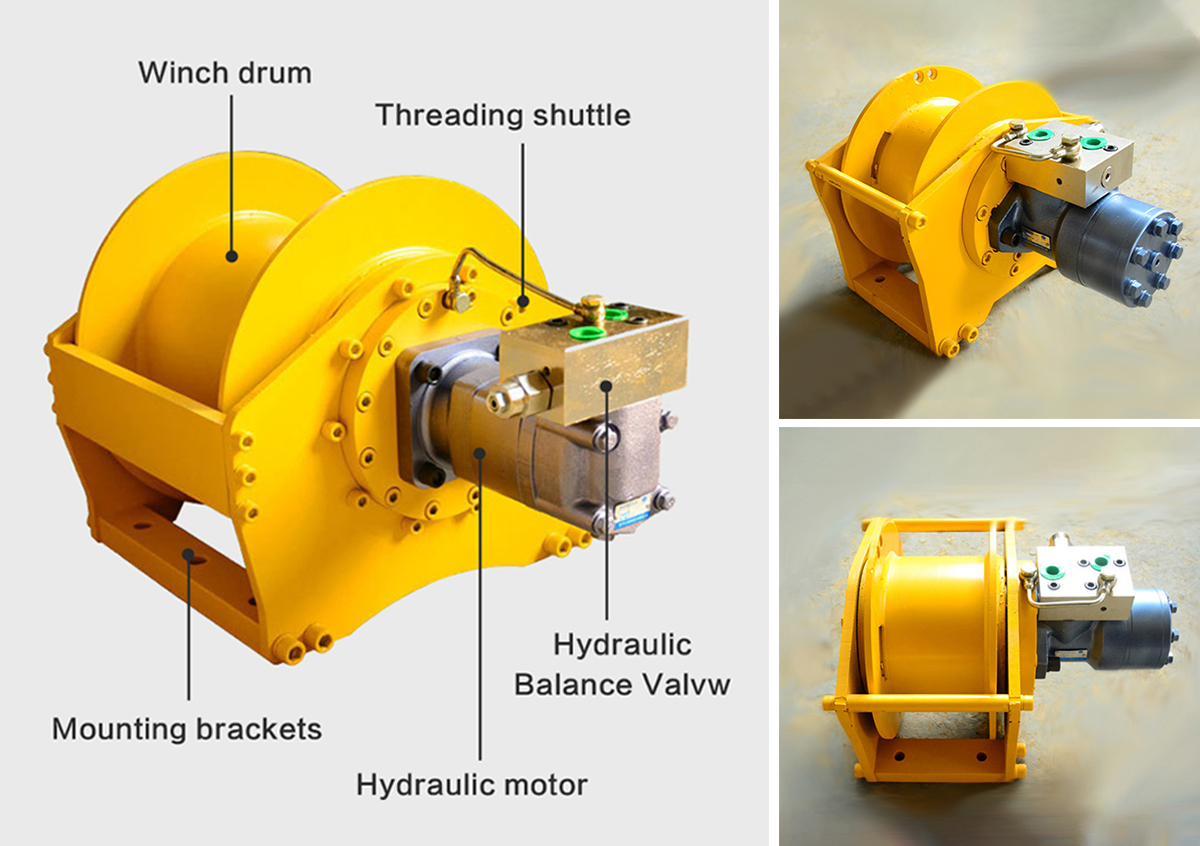

Hydraulic winches, also known as hydraulic winch, are used in a variety of lifting equipment occasions. Types are divided into: built-in hydraulic winch, exposed hydraulic winch, high-speed hydraulic winch, low-speed hydraulic winch, hydraulic winch usually by the hydraulic motor, control valve, gear boxes, rollers, brackets, (clutch) Rope, installation bracket and other combinations.

Some hydraulic winch does not take stand, directly by the hydraulic motor, control valve group, the drum, the end of the shaft and other components, these can be based on customer needs matching, can be widely used in conveyor tensioners, construction machinery Lifting cranes such as truck cranes, crawler cranes, aerial work platforms, forestry cranes, and port vessels such as port cranes, floating cranes, dredgers, crane cranes and davits, as well as heavy lifting equipment Such as oil rigs, offshore oil rigs, rotary drilling rigs for piling machines, rock drills, core drills, hydrostatic piles, and more.

Features

Only flow restrictors and manifolds are on the outside of the drum. Hydraulic motors and shell to drive devices and other components are hidden in the winch drum, so the axial size is small, compact, beautiful appearance;

Starting efficiency and transmission efficiency, low energy consumption, reliable, long service life;

low noise during operation;

good economic performance；

JM electric slow speed winch

Loading capacity: 0.5~200 t
Working speed: 5~20 m/min;(single speed and dual speed)
Power supply: 220-690V, 50/60HZ, 3Phase

JK high speed Electric Winch

Loading capacity: 0.5~60 t
Rope capacity: 20~500 m
Working speed: 20~35 m/min; (single speed and dual speed)
Power supply: 220-690V, 50/60HZ, 3Phase

JKL Electric Piling Winch
Loading capacity: 1~10t
Rope capacity: 20~500 m
Working speed: 20~36 m/min
Power supply: 220-690V, 50/60HZ, 3Phase

JKD electric planetary winch

Loading capacity: 0.75-2 t
Rope capacity: 20~500 m
Working speed: 20~35 m/min
Power supply: 220-690V, 50/60HZ, 3Phase

JMM type friction electric winch

Loading capacity: 1-100 t
Rope capacity: 20~500 m
Working speed:5~20 m/min
Power supply: 220-690V, 50/60HZ, 3Phase

Technical Parameters

Model

Level one

Working pressure difference

Oil supply flow

Wire rope diameter

Layers

Rope capacity

Pull

Rope speed

5 Ton

0-30

120

8 Ton

0-32

120

113

10 Ton

100

0-40

220

120

Features of electric winch:

1.The fully floating planetary gear reducer has more stable operation and more reasonable structure.

2.Adopt multi-plate friction normally closed system. The actuator has high braking torque and safety. The product has the characteristics of small size, compact structure and high transmission efficiency.

3.With the function of free flight Adopt brand motor, long service life. Mounting brackets can be manufactured individually according to user requirements According to user needs, special winch 4.balance valve and shuttle valve can be made.

5.Manual and pneumatic clutch devices are used.
