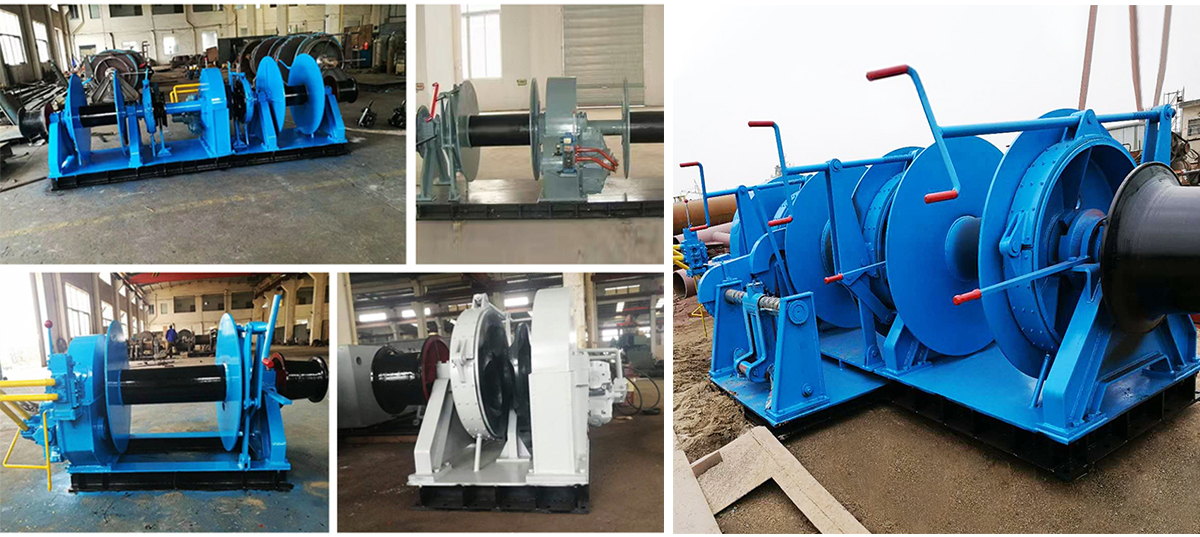

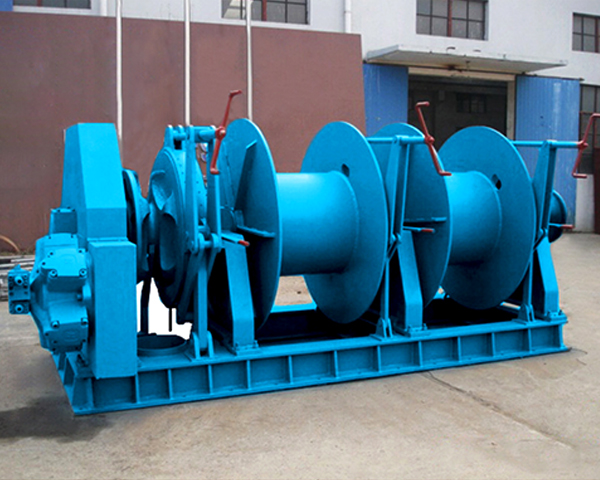

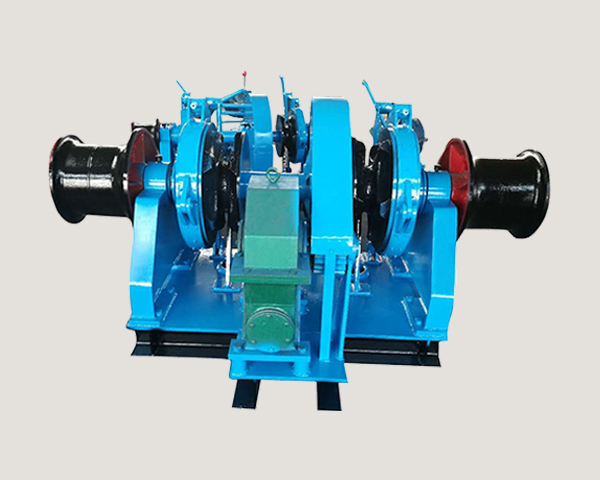

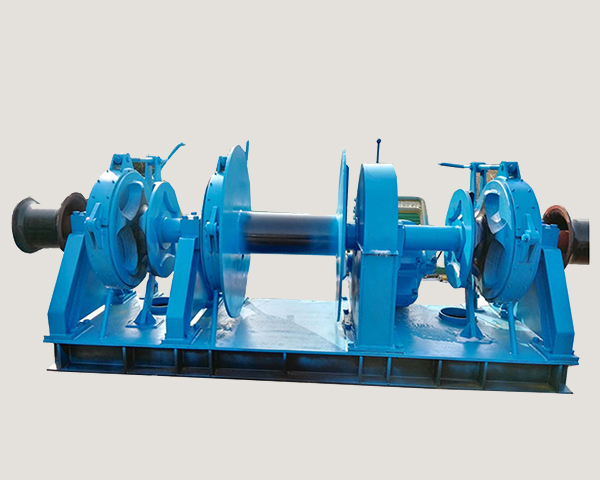

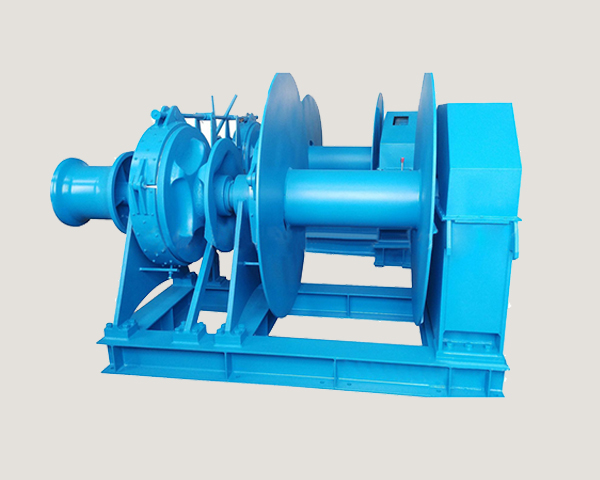

Anchor Winch

Diesel engine power winch is slow speed diesel engine driven gear winch; It is mainly used for hoisting, drag-and-drop, loading cargos, such as all kinds of large concrete construction, steel constructions installation and disassembly; The winches are app

Power:

1400W, 22KW

Voltage:

220-480v

Load capacity:

100kn

speed:

8m/min

Customized support:

OEM, ODM

Get Price Chat Now Pdf Download Send Email

Share With :

Product Description Technical Parameters Related product Inquiry

Product Description

Product Application

This series winch is mainly used for large and oversize concrete construction of steel installation and disassembly of mechanical equipment. This structural characteristic is wire rope orderly arrangement lifting is safe and reliable. It is suitable for bridge port and road and bridge engineering and large factories and mines engineering equipments installation.

Features

High quality with competitive prices;

Much experience in producting and exporting windlasses;

Special design for different clients;

Short delivery time if clients need urgently；

JM electric slow speed winch

Loading capacity: 0.5~200 t
Working speed: 5~20 m/min;(single speed and dual speed)
Power supply: 220-690V, 50/60HZ, 3Phase

JK high speed Electric Winch

Loading capacity: 0.5~60 t
Rope capacity: 20~500 m
Working speed: 20~35 m/min; (single speed and dual speed)
Power supply: 220-690V, 50/60HZ, 3Phase

JKL Electric Piling Winch
Loading capacity: 1~10t
Rope capacity: 20~500 m
Working speed: 20~36 m/min
Power supply: 220-690V, 50/60HZ, 3Phase

JKD electric planetary winch

Loading capacity: 0.75-2 t
Rope capacity: 20~500 m
Working speed: 20~35 m/min
Power supply: 220-690V, 50/60HZ, 3Phase

JMM type friction electric winch

Loading capacity: 1-100 t
Rope capacity: 20~500 m
Working speed:5~20 m/min
Power supply: 220-690V, 50/60HZ, 3Phase

Technical Parameters

Technical Parameter of Electric Winch
Model	Rated load (KN)	Rated speed (m/min)	Rope capacity (m)	Rope diameter (mm)	Motor model	Motor power (KW)	Overall dimensions (mm)	Total weight (kg)
JK1	10	22	100	9.3	Y112M-4	4	620x701x417	300
JK1.6	16	24	120	12.5	Y132S-4	5.5	945×996×570	500
JK2	20	24	120	13	Y132M-4	7.5	945x996x570	550
JK3.2	32	25	200	15.5	YZR180L-6	15	1325x1335x840	1200
JK5	50	30	200	21.5	YZR225M-6	30	1900x1620x985	2400
JK8	80	25	250	26	YZR280S-8	45	1533x1985x1045	3500
JK10	100	30	300	30	YZR315S-8	55	2250x2500x1300	5100

Type	Rated Load (kN)	Rated Speed (m/min)	Rope Capacity (m)	Rope Diameter (mm)	Motor Type	Motor Power (kW)
JM2	20	16	150	13	Y160M-6	7.5
JM5	50	10	270	21.5	YZR160L-6	11
JM10	100	8	170	30	YZR200L-6	22
JM20	200	10	600	43	YZR280S-8	45
JM25	250	9	700	48	YZR280M-8	55
JM32	320	9	700	56	YZR315S-8	75
JM50	500	9	800	65	YZR315M-8	90
