Product Description
Product
This explosion proof electric hoist is designed with explosion proof level ExdII BT4 and ExdII CT4, which can be used on workshop fixed suspension rail individually, also can be used with LXB explosion proof suspension single beam, LB explosion proof electric single beam and explosion proof hoist double beam.
It is applicable in such occasions as combustible, explosive, dusty, corrosive acid/alkaline/plating and mixture gas.
The obvious sign of explosion-proof electric hoist is his explosion-proof electric motor which has fireproof and dustproof function. This kind of motor is made more preciously.
Features
1
Reasonable structure,light dead weight.
2
Favorable performance, accurate and smooth lifting.
3
Safe and reliable traveling.
4
Low noise, easy operation.
5
Convenient maintenance, high exchangeability for parts and components.
6
Explosion-proof form is "Exd" .
7
The Exmark are dIIBT4 or dIICT4.
8
Temperature scale is Class T1-T4 mixture with explosive air
01

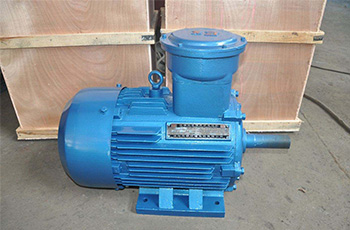

Motor
Explosion-proof electric motor has fire-proof and dustproof function. This kind of motor is made more preciously.
Class B or Class F insulation, IP44 / IP54 motor protection grade
02

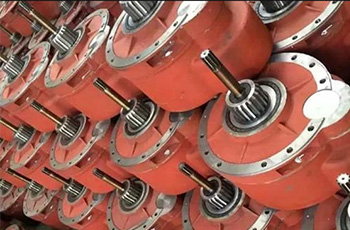

Reducer
The gear is specially treated for high wear resistance. Each Geared Shaft assembly is supported on ball or roller bearings, to ensure smooth, low-friction operation
03

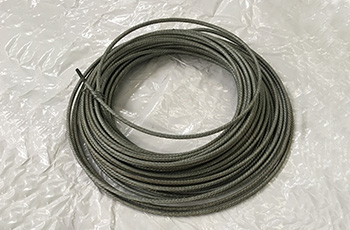

Wire rope
Hoisting ropes comply with the exporting standards. The leading rope taken by the drum does not slip sideways when slack.
04

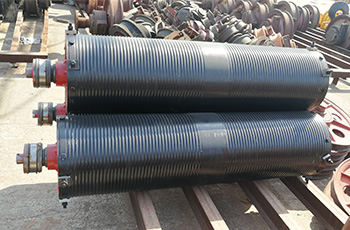

Rope drum
Grooved hoist Drum, seamless pipe of adequate length to be wounded in one layer and to provide proper support for the rope to minimize abrasive wear is provided. Drum Shaft resolves on Ball Bearings for ensuring smooth running.
05

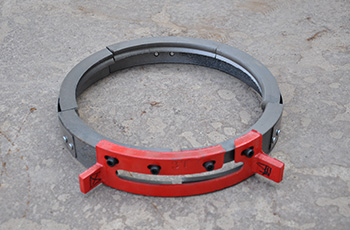

Rope guide
Rope guide is in two halves, ensuring easy accessibility. It encircles the drum completely so that the rope may not uncoil even when the hoist is in unloaded condition.
06

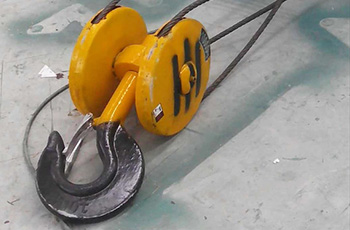

Hook block
The hook can rotate 360 degree and has safety latch, safe and reliable.
07

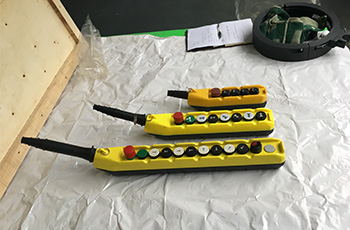

Control ways
Pendant control and remote control.
Technical Parameters
| Model | HB, BCD, BMD | |||||||
| Lifting capacity(t) | 0.5 | 1 | 2 | 3 | 5 | 10 | 16 | 20 |
| Lifting height(m) | 6/9/12/18/24/30 or specified height | |||||||
| Lifting speed(m/min) | 8 (0.8/8) | 7 (0.7/7) | 3.5 (0.35/3.5) | |||||
| Traveling speed(m/min) | 20 | |||||||
| Power Source | 3PAC 380v,50HZ | |||||||
Product display
