Product Description
Product Description
KBK Light Crane System includes KBK single beam crane, KBK double beam crane, KBK monorail suspension crane, KBK jib crane, etc. mainly equiped with chain hoist with widely applications: This KBK crane system suitable for workshop, warehouse,working environment: 20 ℃~ + 60 ℃, altitude shall be less than 1500m, indoor used. There are protective devices when environment is special.
Features
Optimum space utilisation
1
Overhead, area-serving load transport
2
Optimum utilisation of space thanks to minimum approach dimensions
3
Suspension from existing workshop ceilings or roof structures
4
Require no additional supports for the crane runway
Convenient handling
1
Simple, safe and reliable handling
2
Favourable installation dimensions
3
Customer-specific and cost-effective solutions for workshops – also in limited sections
4
Versatile applications thanks to modular system design (e.g. latching arrangements with KBK double suspension monorails for crane trolley transfer)
5
Can also be employed as manipulator cranes – optimum design for use in state-of-the-art handling systems. Strong performance
6
Rated for loads weighing up to 3,200 kg
7
Maximum possible hook paths by arranging the hoist between the crane girders
8
Maximum span dimensions by means of multiple suspensions (cranes operating on more than two runways) – to cover extensive storage and production areas
9
Modular system design
Technical Parameters
| Technical cable | |
| Capacity | 50kg-3.2t |
| Span | 0.7-12m |
| Lifting height | 2-8m |
| Lifting speed | 1-22m/min |
| Traveling speed | 3.2-40m/min |

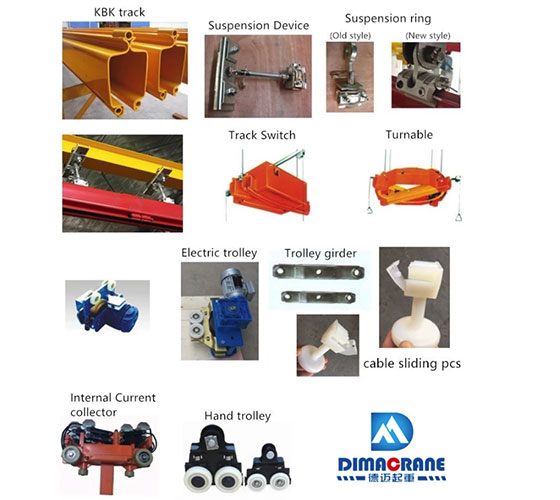

Main Components
Production Process
