BMH Semi gantry crane

BMH Semi Gantry Crane

BMH Semi Gantry Crane is a regular crane widely used at open ground and warehouses to load and unload.

Lifting capacity:

5-50tons

Lifting height:

3-30m or customized

Span:

3-35m

Lifting mechanism:

Hoist or trolley or winch

Working class:

A3-A5

Get Price Chat Now Pdf Download Send Email

Share With :

Product Description Technical Parameters Related product Inquiry

Product Description

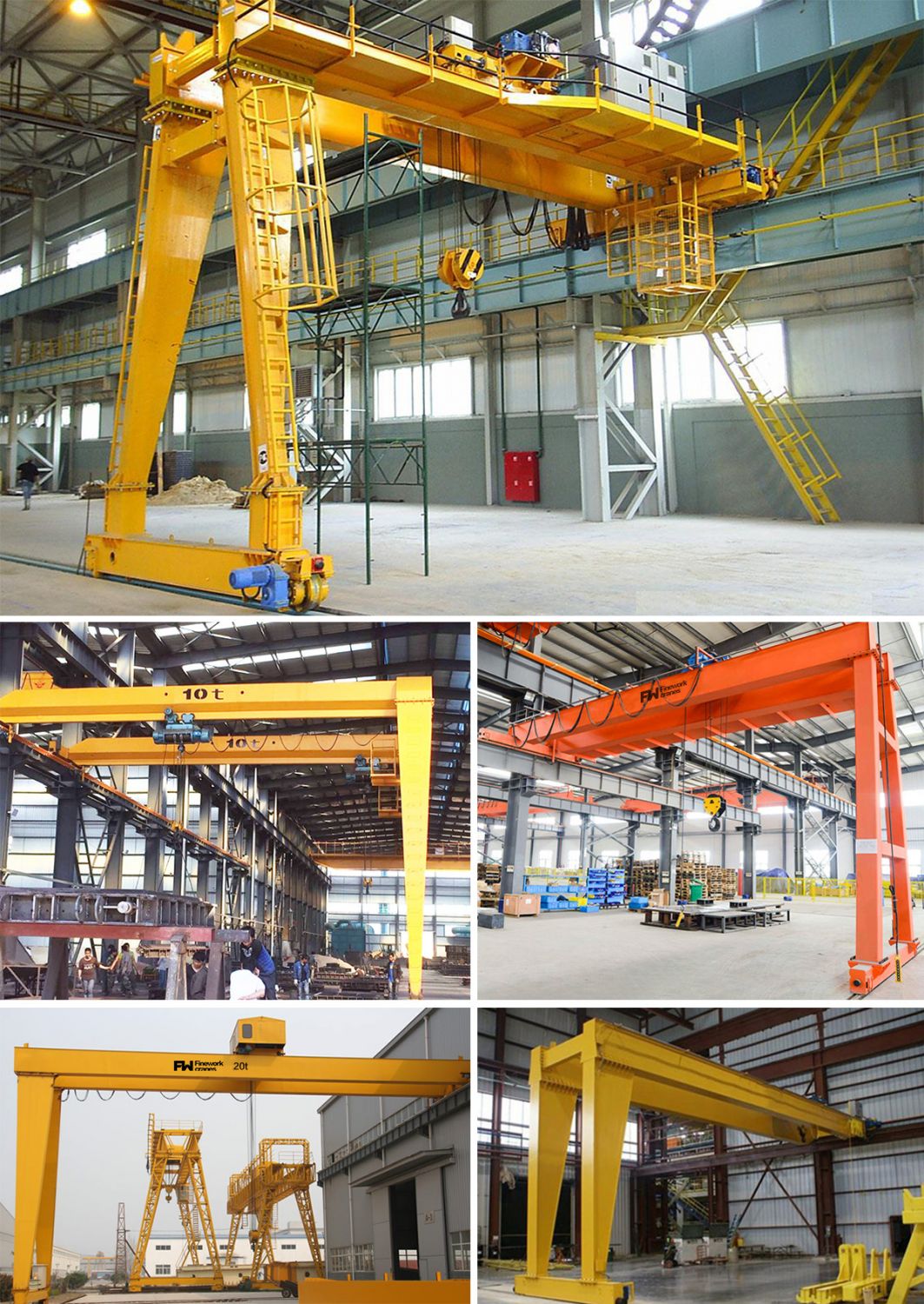

The single girder semi gantry crane is a general purpose light crane used in workshop or outdoors. Semi Gantry Crane can be divided into Three types, single girder semi gantry crane, double girder truss type semi gantry crane, and double girder box-type semi gantry crane. This kind of crane is composed of gantry frame, main girder, legs (two sets), slide sill, lifting mechanism, travelling mechanism, and electric box. The leg height of this single girder semi-gantry crane can be different according to the engineering needs on the construction field.

Features

Simple structure, easy installation, light weight and good wind-resistance.

Specifications

Lifting capacity: 5-50tons

Lifting height: 3-30m or customized

Span: 3-35m

Lifting mechanism: hoist or trolley or winch

Working class: A3-A5

Control way: pendant control, remote control, cabin control

Working temperature: -20 ℃ to 40 ℃

Advantages

Semi-Gantry Crane With CD/MD Hoist

Compact structure, good rigidity.

Favorable performance,

Smooth starting and stopping,

Safe and reliable traveling, strong ability of lateral load proof.

Low noise, no pollution.

Flexible installation and operation, convenient maintenance,

Electricity saves

Excellent exchange ability for parts and components.

Less investment

Electric Hoist :

Model CD1,MD1 wire rope electric hoist is a small-sized lifting equipment, which can be mounted on single beam, bridge, gantry and arm cranes. With slight modification, It can also be used as a winch. It is widely used in factories,mines,harbours,warehouse.

Main Beam :

Main beam will have sandblast derusting and painted with zinc rich epoxy primer.

Main beam is cut by plasma numerical control cutting machine.

The butt weld of tension flange shall undergo ultrasonic or x-ray flaw detection as specified.

Outrigger :

Consist of rigid outrigger and flexible outrigger, all connection points are connected by high -tension bolt.

The ladder is used by operator to enter into cab or arriving at winch.

When the span is beyond 30m, there needs a flexible leg to reduce the lateralthrust of the trolley to the rail when the girder lifts materials.

Ground End Beam :

End beam will have sandblast derusting and painted with zinc rich epoxy primer.

The wheels of end beam are produced in special vacuum casting workshop which make wheels more elastic and outer surface hard-wearing and durable.

Technical Parameters

Capacity t	Span m	Lifting height m	Lifting speed m/min	Trolley speed m/min	Crane speed m/min	Working class	Track
3	12	6~9	8, 8/0.8	20	20	A3-A5	P34 P38
	16
	20
	24
5	12	6~9	8, 8/0.8	20	20	A3-A5	P24 P38
	16
	20
	24
	30	9
10	12	6~9	7, 7/0.7	20	20	A3-A5	P38 P43
	16
	20
	24
	30	9
16	12	6~9	3.5, 3.5/0.35	20	20	A3-A5	P38 P43
	16
	20
	24
	30	9
