MH Single beam gantry crane,gantry crane, goliath crane

MH Single Beam Gantry Crane (Box-type)

MH Single Beam Gantry Crane (Box-type) is widely used to do loading and unloading in outdoor sites, such as material stocks area, cement plant, granite industry, construction industry, and engineering industry and so on.

Lifting capacity:

3-50ton

Span:

3-35m or customized

Lifting height:

6-30m or customized

Working class:

A3-A5

Working temperature:

-20 ℃ to 40 ℃

Get Price Chat Now Pdf Download Send Email

Share With :

Product Description Technical Parameters Product Application Related product Inquiry

Product Description

Product

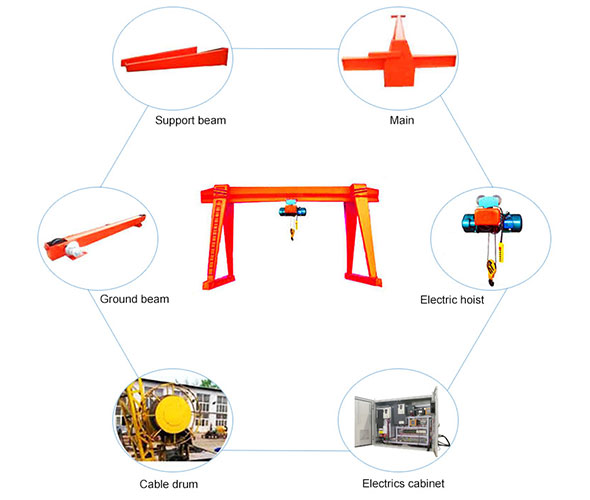

Single girder gantry crane, it is a rail traveling medium type crane, it uses together with MD1,CD1 type electric hoist. It is composed of beam, support legs, crane travelling mechanism, trolley, electric equipment and so on.It could be special design and customize by clients' requirement.

Features

Simple and compact structure, steady performance.

Easy to install and high efficiency.

Overload, low voltage protective device.

Pendent control and remote control.

Easy maintenance.

Electric Hoist

ModelCD1,MD1wirerope electric hoist is a small-sized lifting equipment,which can be mounted on single beam, bridge,gantry and arm cranes.With slight modification, it can also be used as a winch. It is widely used in factories, mines, harbors, warehouse.

Beam

Main beam will have sandblast derusting and and painted with zinc rich epoxy primer.
Main beam is cut by plasma numerical control cutting machine;
The butt weld of tension flange shall undergo ultrasonic or x-ray flaw detection as specified.

Specifications

Single Girder Gantry Crane With CD/MD Hoist

Lifting capacity: 3-50ton

Span: 3-35m or customized

Lifting height: 6-30m or customized.

Working class: A3-A5

Working temperature: -20 ℃ to 40 ℃

Power Supply: 380V,415V or as Per Request

Control method: Ground control, Cabin control;

Electric Hoist :

Model CD1,MD1 wire rope electric hoist is a small-sized lifting equipment, which can be mounted on single beam, bridge, gantry and arm cranes. With slight modification, It can also be used as a winch. It is widely used in factories,mines,harbours,warehouse.

Main Beam :

Main beam will have sandblast derusting and painted with zinc rich epoxy primer.
Main beam is cut by plasma numerical control cutting machine.
The butt weld of tension flange shall undergo ultrasonic or x-ray flaw detection as specified.

Outrigger :

Consist of rigid outrigger and flexible outrigger, all connection points are connected by high -tension bolt.
The ladder is used by operator to enter into cab or arriving at winch.
When the span is beyond 30m, there needs a flexible leg to reduce the lateralthrust of the trolley to the rail when the girder lifts materials.

Ground End Beam :

End beam will have sandblast derusting and painted with zinc rich epoxy primer.
The wheels of end beam are produced in special vacuum casting workshop which make wheels more elastic and outer surface hard-wearing and durable.

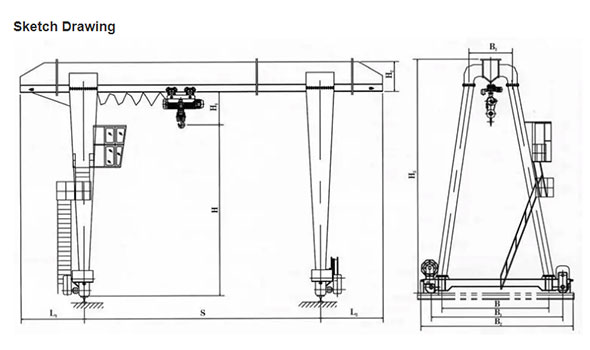

Technical Parameters

Capacity (t)			3	5	10	16	20
Span (m)			12, 16, 20, 24, 30
Operational method			Pendent Line With Press Button /Cabin/ Remote
Speed (m/min)	Lifting		8 ,8/0.8	8,8/0.8	7,7/0.7	3.5	3.5
	Cross travelling		20	20	20	20	20
	Long travelling	Ground	20	20	20	20	20
		Cabin	20,30,45	20,30,40	30,40	30,40	30,40
Motor (Kw)	Lifting		ZD41-4/4.5	ZD141-4/7.5 ZDS10.8/4.5	ZD151-4/13 ZDS11.5/4.5	ZD151-4/13	ZD152-4/18
			ZDS1-4/0.4/4.5
	Cross travelling		ZDY12-4/0.4	ZDY121-4/0.8	ZDY21-4/0.8×2	ZDY121-4/0.8×2	YZD-4/0.8×4
	Long travelling	Ground	ZDY21-4/0.8×2	YZY22-4/1.5×2	YZR22-4/1.5×2	YZR160M1-6/6.3×2	YZR160M1-6/6.3×2
			ZDY21-4/1.5×2	YZR132M2-6/3.7×2		YZR160M2-6/8.5×2	YZR160M2-6/8.5×2
		Cabin	ZDR100-4/1.5×2	YZR112L1-4/2.1×2	YZR112L1-4/2.1×2	YZR160M2-6/8.5×2	YZR160M2-6/8.5×2
			ZDR112-4/2.1×2	YZR160M1-6/2.1×2	YZR160M2	YZR160L2-6/11×2	YZR160L2-6/11×2
Electric hoist (Model)			CD1/MD1	CD1/MD1	CD1/MD1	CD1	MD1
Lifting height (m)			6, 9, 12, 18, 24,30
Working duty			A3
Power supply			380V 50HZ 3phase AC (According to your demand )

Product Application

This crane is widely applied to do loading and unloading work in outdoor. Such as material stocks area, cement plant, granite industry, construction industry, and engineering industry and so on. It has features of beautiful and durable appearance, perfect performance, low cost, easy maintenance, high adaptability and so on.

Henan FineWork Cranes Co.,Ltd is a professional manufacturer and service supplier of material handling equipment integrating R&D, design, manufacturing and marketing, all the cranes and electric hoists comply to FEM/DIN standard.Our company was founded in 1984, which is one of the most competitive enterprise with the largest production & sales turnover, it is also one of the most influential brand in Chinese crane industry.
