Product Description
Product

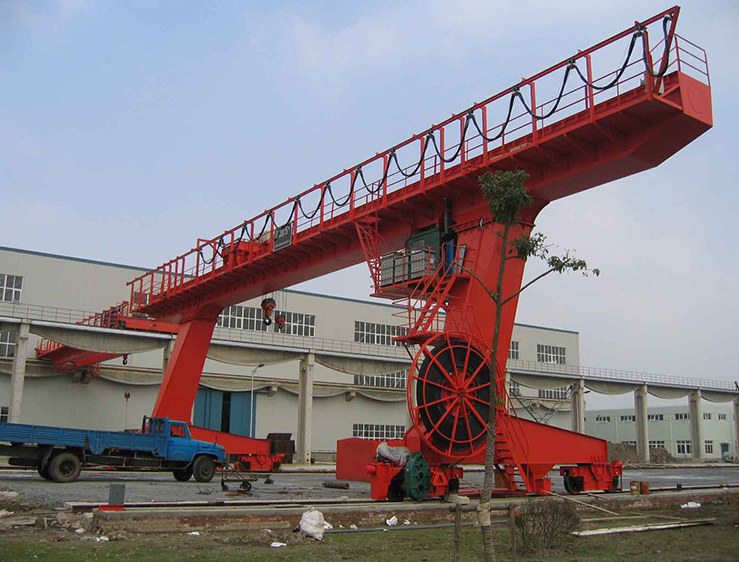

L Type Single Girder Gantry Crane match with CD1/ MD1, HC/HDG type Electric Wire rope hoist , or the L model girder hoist trolley , to lifting and tranporting the heavy materials, mainly use indoors and outdoors.In order to expand the scope of crane operation, the main girder can extend to one side or both sides to extend the leg to form a cantilever. It is also possible to extend the operation scope of the crane by lifting and lifting the boom with the boom.
Features
1
Four main parts: bridge structure, walking mechanism, trolley and electrical equipment.
2
The bridge is welded structure of boxed-type girder, individual drives are adopted for traveling mechanism on each end beam of the crane.
3
All movements of the crane are controlled in the cabin.
4
Max and Min value of environment temperature, the short of power supply, the voltage and the other data shall meet customer needs.
Advantages
1
Small size, good safety
2
Reasonable structure and favorable performance
3
Special for lifting and carriage long goods
4
All kinds Protection device, help to improve work efficiency
Technical Parameters
|
Lifting capacity |
t |
5-10 |
16/3.2 |
20/5 |
|||||||||||||||||||
|
Span |
m |
18 |
22 |
26 |
30 |
35 |
18 |
22 |
26 |
30 |
35 |
18 |
22 |
26 |
30 |
35 |
|||||||
|
Lifting height |
Main |
m |
10 |
11 |
10 |
11 |
10 |
11 |
|||||||||||||||
|
|
Aux |
|
/ |
10.5 |
11.5 |
10 |
11 |
||||||||||||||||
|
Working system |
A5 |
||||||||||||||||||||||
|
Speed |
Hoisting |
Main |
m/min |
12.5-9.82 |
9.7 |
9.3 |
|||||||||||||||||
|
|
|
Aux |
|
/ |
22.3 |
19.8 |
|||||||||||||||||
|
|
Crab Traveling |
|
39.5-40.4 |
39.7 |
39.7 |
||||||||||||||||||
|
|
Travel traveling |
|
46-39.5 |
39.5-40 |
39.5 |
40 |
39.5 |
48 |
|||||||||||||||
|
Installed power |
KW |
28.1-48.5 |
62.3 |
71.3 |
76.8 |
85.5 |
96.8 |
||||||||||||||||
|
Max.wheel load |
KN |
157-286 |
292 |
300 |
301 |
363 |
375 |
333 |
339 |
355 |
410 |
423 |
|||||||||||
|
Power supply
|
380V 50Hz 3Phase AC |
||||||||||||||||||||||
Structure
