MH Type Single Girder Gantry Crane (Truss-type)

MH Type Single Girder Gantry Crane (Truss-type) truss crane adopts model CD, MD, and other electric hoists, which are composed of metal structure, cart operating mechanism, electric device and trolley.It can has cantilevers, the crane can load the goods t
Lifting capacity:
3.2-32tons
Span:
12-30m
Lifting height:
6-9m or customized
Working class:
A3-A5
Lifting mechanism:
CD1,MD1,HC
Share With :
Product Description
Product
MH Type Single Girder Gantry Crane (Truss-type) truss crane adopts model CD, MD, and other electric hoists, which are composed of metal structure, cart operating mechanism, electric device and trolley.It has cantilevers, the crane can load the goods to the crane edge through the supporting legs, which is very convenient and high efficiency.It is suitable for the small and medium lifting load outdoor working site in factories, mines, warehouses, etc.
Features
1
Simple and compact structure
2
The surface of the wind is very small
3
Light weight, strong lifting capacity
4
Steady performance
5
Reduce daily maintenance
6
Cut down your cost in building of plant and workshop
7
Ground-controlling and remote-controlling
Advantages
1
The best light crane,low cost & less wastage
2
Easy operation & installation
3
Strong wind resistance
4
Safety with high performance
5
Be suitable for different operating conditions and provide you One-stop Solutions

Technical Parameters
Lifting capacity t 3.2 5 10 16 20 32
  Lifting 8,8/0.8 8,8/0.8 7,7/0.7 3.5 3.5 43625
Speed m/min Cross travel 20 20 20 20 20 20
Long  Ground 20 20 20 20 20 20
travel Cabin 20,30,45 20,30,40 30,40 30,40 30,40 30,45
Motor Type (KW) Lifting   ZD41-4/4.5 ZD141-4/7.5, ZDS10.8/4.5 ZD151-4/13, ZDS11.5/4.5 ZD151-4/13 ZD152-4/18 ZD*62-6/18, ZDX1-2.2/18
Cross travel   ZDY12-4/0.4 ZDY121-4/0.8 ZDY21-4/0.8×2 ZDY21-4/0.8×2 YZD-4/0.8×4
Long Travel Ground ZDY21-4/0.8×2 YZR132M1-6/2.2×2 YZR160M1- YZR160M1-6/6.3×2 YZR160M2-6/8.5×2
ZDY21-4/1.5×2 YZR132M2-6/3.7×2 6/6.3×2 YZR160M2-6/8.5×2 YZR160L2-6/11×2
Cabin ZDR22-4/1.5×2 YZR132M2-6/3.7×2   YZR160M2-6/8.5×2
ZDR24-4/2.2×2 YZR160M1-6/5.5×2   YZR160L2-6/11×2
Electric Hoist type CD1/MD1 CD1 HC
Power Supply 380V 50HZ 3phase AC/220v 50Hz 1phase
Span m 12~30
Lifting height m 6, 9
Span m 12,16,20,24,30
Controlling method                                                    Cabin;Remote control

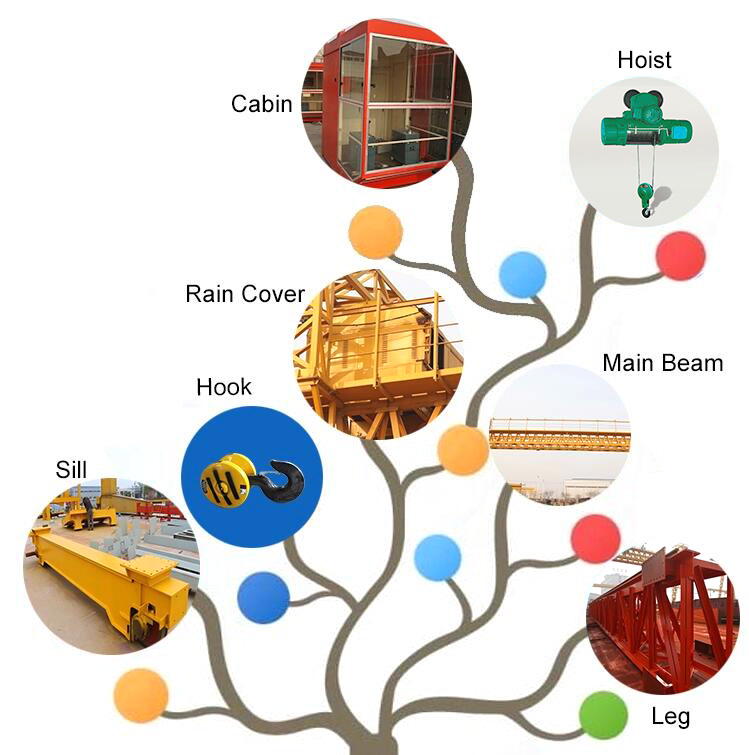

Structure
