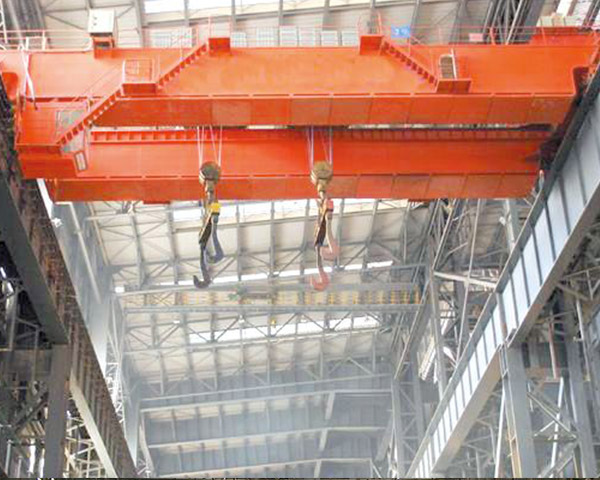

QE Double Girder Overhead Crane is equipped with 2 trolleys which can work simultaneously or separately. It is suitable for lifting long materials (wood, paper tube, pipe and bar) in workshop or open warehouse in industrial and mining industries.
Features
1
Heavy Duty and High Efficiency
2
Long Life service.
3
Smooth movement and comfortable operation.
4
Customized: design and manufacture acc.to customer’s request.
5
Reliable structure.
6
Lifting capacity: 5t - 500t
01
Main Girder

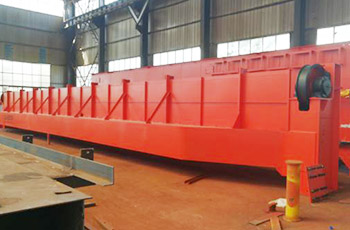

With strong box type and standard camber, there have reinforcement plate inside the main girder. Material of high quality carbon steel Q235B and Q345B;
02
End carriage

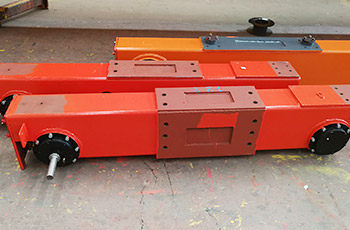

Use rectangular tube manufacturing module, butter motor drive, with roller bearings and lubrication;
03
Trolley

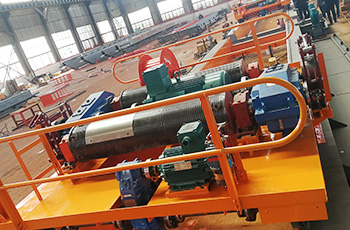

It is with heavy capacity and high working class. It is developed specifically for lifting that requires accurate and smooth movement.
04
Wheel

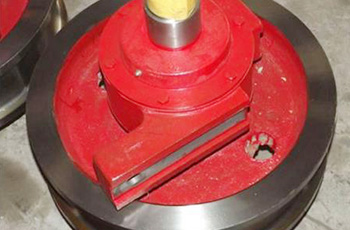

Equipped with high quality forged or casting wheel, which will have be heat treated to ensure wheels’ performance.
05
Hook block

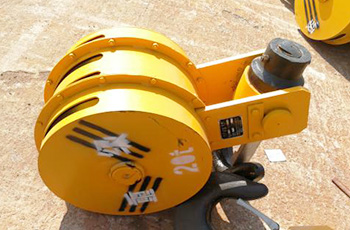

The hook block is composed of sheaves, hooks and latch, 360 degree rotating. The hook is forged and single hook and double hook is available.
06
Operation ways

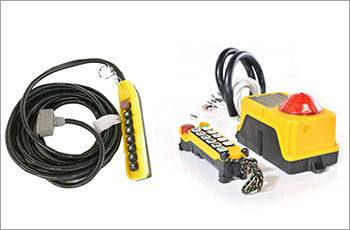

Pendant control, remote control and/or cabin control
07
Cabin

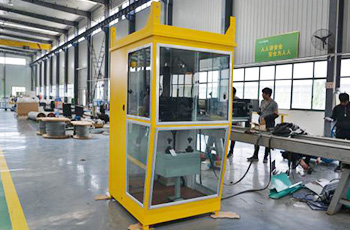

The cabin has open model and closed model. It can be installed on left or right side according to the practical situation. And the direction of entering has two ways: sideway entrance and end surface entrance to satisfy the users' choice in different conditions.
Technical Parameters
|
Model |
QE type |
|||||
|
Lifting capacity |
t |
5+5 |
10+10 |
16+16 |
||
|
Max. lifting height |
m |
16 |
||||
|
Span |
m |
10.5-31.5 |
||||
|
Lifting speed |
A5 |
|
11.3 |
8.5 |
7.9 |
|
|
A6 |
|
15.6 |
13.2 |
10.7 |
||
|
Traveling speed |
Trolley |
A5 |
|
37.2 |
43.8 |
44.6 |
|
Crane |
A5 |
|
90.7(91.9,84.7) |
84.7 (87.6) |
87.6(74.2,74.6) |
|
|
A6 |
|
92.7(93.7,86.5) |
76(89) |
89(75.3) |
||
|
Power |
3P 380V 50Hz or others |
|||||

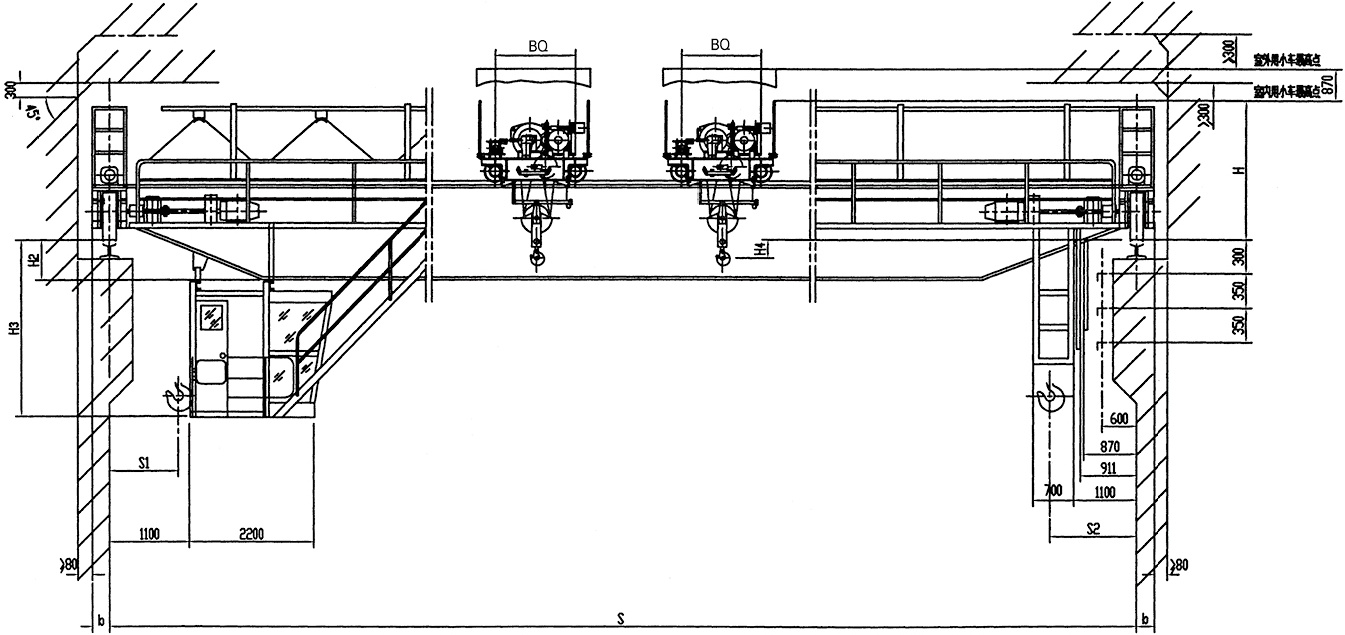

Configuration
Related Product
-
LD-Single Girder Overhead CraneSingle Girder Overhead Crane is a light equipment of crane. It is widely used in plants, warehouses, material stocks to lift goods. -
.jpg)
LX-Suspension Overhead CraneIt is applicable for factories and warehouses where the height from the rail surface to the lower edge of the truss is equal to or shorter than 500mm. -
QD-Double Girder Overhead CraneDQ-Double Girder overhead Crane is a kind of heavy duty crane, it could be classified into several working duties: A5, A6, A7, according to the working frequency and pure working time.
