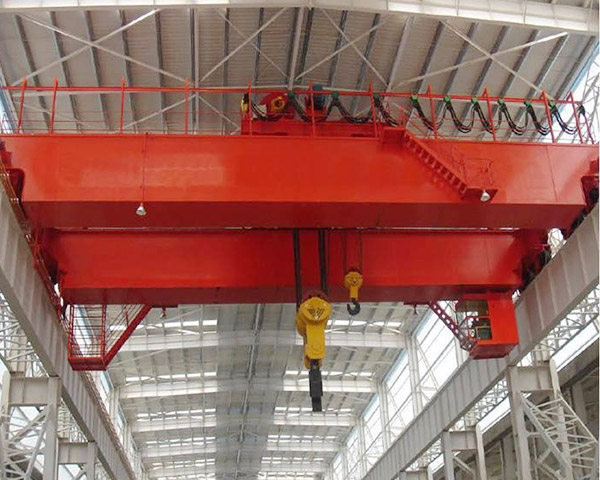

Insulation double girder overhead cranes are suitable for smelting workshops such as non-ferrous metal electrolytic aluminum, magnesium, lead and zinc. Because the equipment on ground in the workshop has DC current, in order to prevent the current on the equipment from being transmitted to the crane through the lifting material during working, which will endanger the life of the driver and the safety of the equipment, several insulation devices are set on the appropriate parts of the crane to ensure the safe working.
All insulation cranes are of heavy working grade, the lifting mechanism is equipped with double brakes to ensure the safe lifting.
All the operation will be realized in the cabin.
Features
1
Heavy Duty and High Efficiency
2
Long Life service.
3
Smooth movement and comfortable operation.
4
Customized: design and manufacture acc.to customer’s request.
5
Reliable structure, safe and reliable, good performance.
6
Lifting capacity: 5t - 500t
01
Main Girder
Finework cranes
With strong box type and standard camber, there have reinforcement plate inside the main girder. Material of high quality carbon steel Q235B and Q345B.
02
End carriage
Finework cranes
Use rectangular tube manufacturing module, butter motor drive, with roller bearings and lubrication.
03
Trolley
Finework cranes
It is with heavy capacity and high working class. It is developed specifically for lifting that requires accurate and smooth movement.
04
Wheel
Finework cranes
Equipped with high quality forged or casting wheel, which will have be heat treated to ensure wheels’ performance.
05

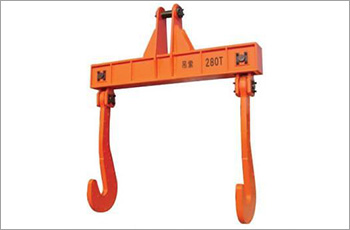

Lifting device
Finework cranes
The beam body is made of high-quality low-carbon alloy steel, high strength, high temperature resistance;
The hook body is spliced by steel plate, and the rivet is pressed by the forged hammer, stronger and safer than the traditional welding rivet; while the hook body can be free to rotate
06
Operation ways
Finework cranes
Pendant control, remote control and/or cabin control.
07
Cabin
Finework cranes
The cabin has open model and closed model. It can be installed on left or right side according to the practical situation. And the direction of entering has two ways: sideway entrance and end surface entrance to satisfy the users' choice in different conditions.
Technical Parameters
|
Model |
QY type |
|||||
|
Lifting capacity |
t |
5 |
10 |
16/3.2 |
20/5 |
|
|
Span |
m |
10.5-31.5 |
||||
|
Max. lifting height |
Main hook |
m |
16 |
16 |
16 |
12 |
|
Aux. hook |
|
|
18 |
14 |
||
|
Working class |
|
A6 |
A6 |
A6 |
A6 |
|
|
Speed |
Main lifting |
m/min |
15.6 |
10.4 |
10.7 |
9.8 |
|
Aux. lifting |
|
|
14.6 |
15.5 |
||
|
Trolley traveling |
37.2 |
43.8 |
44.6 |
44.6 |
||
|
Crane traveling |
92.7(93.7) |
92.7(93.7,86.5) |
76(89) |
76(89) |
||
|
Recommended track |
|
38kg/m |
43kg/m |
43kg/m QU70 |
43kg/m QU70 |
|
|
Power supply |
|
AC 3P 380V 50Hz or others |
||||
