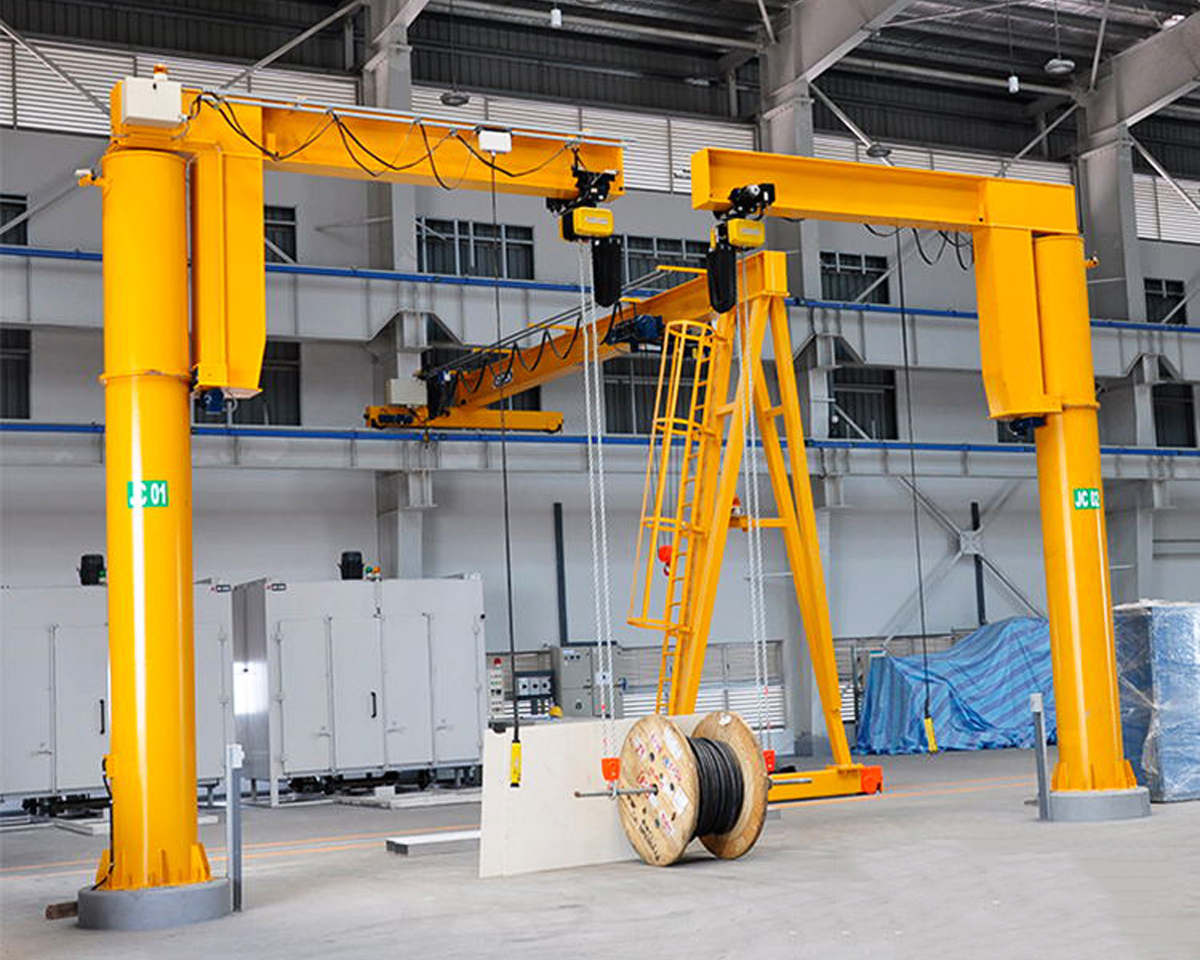

Column Mounted Jib Crane

Column Mounted Jib Crane is suitable for short distance, frequent use and intensive lifting operation. It is very practical and can be installed anywhere you can image.
Lifting capacity(t):
3/5
Lifting height (m):
4.5/5
Valid radius(m):
5/5.5
Slewing angle:
180°,270°,360°,Arbitrarily
Share With :
Product Description
Product Description
Column mounted jib crane work for light intensity, crane by post, rotating arm rotation drive device and electric hoist, column bottom through on the concrete foundation with anchor bolt, cantilever rotary driven by cycloidal pinwheel reducer, electric hoist on the cantilever beams as a straight line running from left to right, and lifting heavy objects. Jib crane for hollow steel structure, light weight, big span, lifting weight, economy and durable.Jib Crane is a new generation of the hoist equipment developed to meet the requirement of modernized production.  And Jib Crane adopts West Germany technology , has the features of reasonable structure, easy operating and high efficiency, etc . It is widely used in mines, workshop, warehouse , wharf,etc.
Fixed column slewing Jib crane is mainly composed of top column, low column, main girder, main girder pole, electric hoist, rotation mechanism and electrical system, etc.Normally control model of jib crane with remote control or pendent line with press button or both.
Features
1
New generation of the hoist equipment developed to meet the requirement of modernized production.
2
Reasonable structure, easy operating and high efficiency, etc .
3
It is widely used in Wareshop,Workshop,Plant,port,Open Yard,Storage Area and etc.
Jib Crane Safety Device
1.Overload Limit Switch
2. Rubber Buffers
3.Electric Protective Devices
4.Emergency Stop System
5.Voltage Lower Protection Function
6. Current Overload Protection System
7. Rail Anchoring
8.Lifting Height Limit Device


Part description
01
SLEWING STEEL:
Finework cranes
STEEL STRUCTURE,TOUGH AND STRONG,WEAR-RESISTANT AND PRACTICAL.LOW-PROFILE JIB ARM PERMITS AND EFFICIENTLY LARGE LIFTING HEIGHT.
02

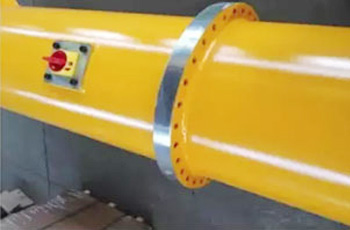

PILLAR:
Finework cranes
PILLAR MADE OF STEEL PIPE.STEEL STRUCTURE,TOUGH AND STRONG,WEAR-RESISTANT AND PRACTICAL.

03
CABLE:
Finework cranes
TRAILING CABLE SYSTEM RUNNING C-RAIL BESIDE THE JIB.
04

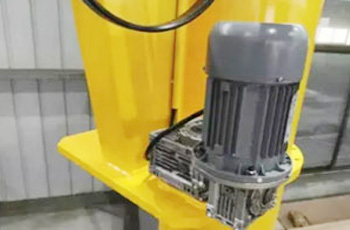

MOTOR:
Finework cranes
BETTER PERFORMANCE,STABLE FREQUENCY,DURABLE FOR A LONG TIME.EASY TO OPERATE.
Technical Parameters
Lifting capacity(t) 3 5
Lifting height (m) 4.5 5 4.5 5
Valid radius(m) 5 5.5 5 5.5
Speed (m/min) Hoisting Slow speed 0.8
  Normal speed 8
Slewing speed 0.5-1
Traveling speed 20
Slewing angle 180°,270°,360°
Used with various electric hoist
Workshop small hoist cantilever swing arm jib crane can be used with mini hoist, wire rope electric hoist and electric chain hoist.

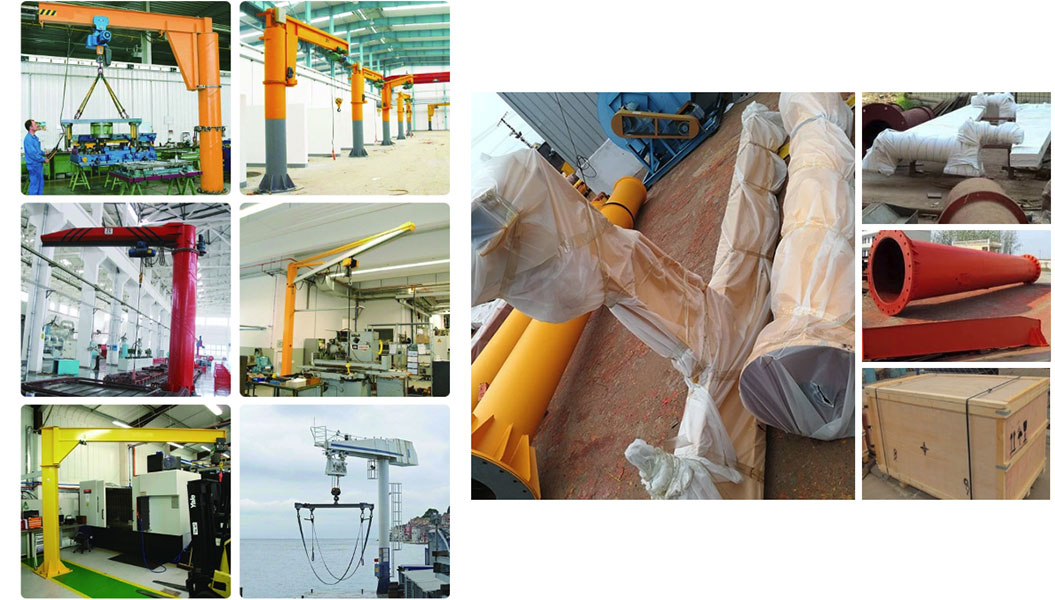

Application & Delivery
